Fluvial - 0.9m High Flood Stop Barrier

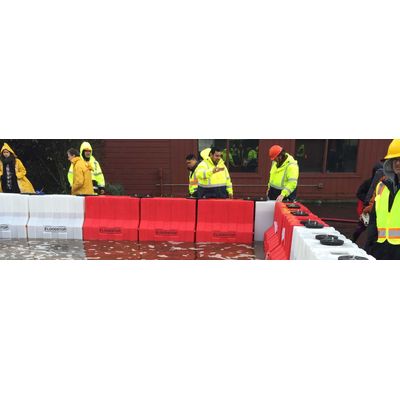

Our 0.9m high Floodstop barrier is a robust and effective flood defence system. The barrier can be assembled to any length and be arranged to suit any direction and opening. The system can be rapidly deployed by two persons with ease. It is often used by construction companies or utilities to protect assets from flood risk.
- Inspect ground conditions and clear any debris
- Position the 0.9m high Floodstop Modular Units out in a linear position for the chosen barrier length
- Fully insert the lower and upper connection keys
- Apply the required curvature to the barrier
- Pre-fill a minimum of every 3rd modular unit (with water ballast) along the assembled flood barrier. Any remaining units (with semi-circular front facing holes) will automatically fill with the rising flood waters. Any units without semi-circle holes must be pre-filled.
- Connect the 0.9m high Multi-hub unit to end of the assembled FLOODSTOP flood barrier
- Rotate the `cam-like` unit into the in-situ object (typically a wall) ensuring the side gasket is placed under pressure
- Fill the pod with water ballast
The flood barrier is assembled by connecting up the 1-metre long modular units using the universal key. When in use the majority of the modular units actually fill with the rising flood waters, which combined with the weighted universal keys ensures the assembled flood barrier holds back flood waters. All units and keys incorporate hard-wearing gaskets to ensure sealing.For acute cornering or wall connection in a Floodstop assembly a Multi-hub unit is simply used.In the above set up a free board is required.
- Local Authority, Commercial & Utility flood Protection
- Household flood protection:
- Doorways
- Driveway
- Garage door protection
- Businesses flood protection:
- Doorways
- Driveway
- Perimeter
- Roller shutter door protection
- Spillage Protection:
- Fluid containment
- Tertiary containment for spillage risk
- Slurry containment
Can be deployed in an emergency or in a semi-permanent or permanent scenario.
Flood insurance is becoming increasingly difficult to obtain, and most home and business owners are aware that they must take responsibility in protecting their properties from the risk of flooding with flood defence barriers. Benefits of Floodstop include:
- Rapidly deployable flood defence system
- Can be assembled by two persons
- Small footprint
- Not affected by strong winds when deployed
- Highly flexible system
- More cost effective and versatile flood protection than sandbags
- Self-balancing with no bolting required
- Multi-hub connection unit allows easy connection to walls and cornering
- Recyclable and reusable.
- Can be used as leverage to gain flood insurance
