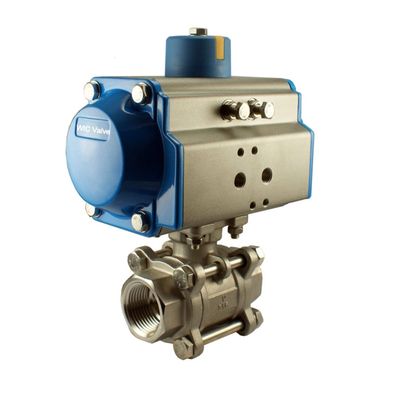

WIC Valve - 1/2 inch Inch Pneumatic Single Acting Air Actuated Ball Valve
WIC Valve PVS series 1/2″ Inch NPT pneumatic air actuated valve ball valve comes with a stainless steel 3-piece ball valve body, it provides a easy installation and maintenance through the slide out body method. This industrial air actuated valve is used to control the on and off of the valve for media such as air, gas, liquid, water and steam. PVS Series air actuated ball valve can be installed with a Tri-clamp end connections for easy line removal and it is ideal for sanitary applications. PVS series single acting air actuated ball valve use air pressure to open the valve and springs to close the valve. The characteristic of the air actuated ball valve is that it has a higher flow rate, temperature and pressure compare with the direct acting valve. Also it is ideal for the hazardous environments.
Valve Type: 2 Way Normally Closed Standard (Option: Normally Open)
Service Media: Air, Gas, Liquid, Water, Steam
Operation Model: Air Actuated Single Acting Spring Return (Use Air Pressure to Open and Springs to Close)
Actuator Operating Pressure: 100 PSI Standard
Actuator Operating Pressure Range: 45 – 120 PSI
Body Material: 316 Stainless Steel / CF8M
Seal Material: Teflon (PTFE)
Operating Pressure: 0 to 1000 PSI at 100 °F
Media Temperature: -51 to 230 °C (-60 to 450 °F)
Ambient Temperature: -20 to 80 °C (-4 to 176 °F)
Port Size: 1/2″ NPT Female Port Standard
Installation Hardware: 1 Piece Tube OD 1/4″ X Thread 1/8″ Male Straight Connector Fittings and 1 Piece of Brass Silencer Included
Pneumatic Actuator Specifications
Actuator Standard: ISO 5211, NAMUR, DIN 3337
Operating Pressure Range: Min: 45 PSI – Max:120 PSI
Operating Media: Pressurized Filter Air
Operating Temperature: –20 to 80°C
Operating Pressure: 3/8″ to 2″ : 1000 PSI @ 100°F WOG
Operating Temperature: -60 to 450°F
Port Style: Full Port
Port Connection: FNPT (Option: Tri-Clamp, Flange)
Mounting Standard: ISO 5211, DIN 3203-M3
