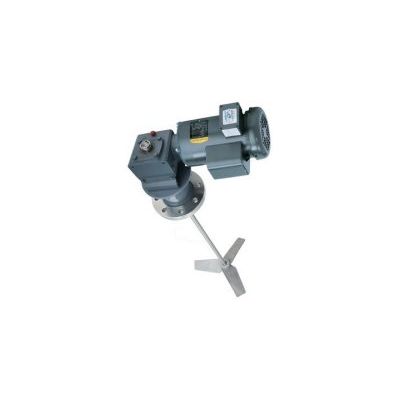

Indco - Model FM-100T -1 HP Electric Heavy Duty Direct Drive Flange Mount Mixer
INDCO`s deluxe heavy duty flange mount mixers are an excellent choice for mixing in large scale process vessels or anywhere sealed mixing is required. Simply the best value in the industry for this type of mixer, the FM-100T model features a 304 stainless steel 4" ANSI flange mount design and a dry-running mechanical seal rated 125 psi to full vacuum. The 3/4 HP totally-enclosed fan cooled motor runs 1750 rpm, requires 115 volt, 60 Hz single phase power, and is connected to the 3/4" diameter x 34" long mixing shaft by a stainless steel coupler. A heavy duty bearing adds support to maximize shaft stability. At the end of the mixing shaft is a 5-1/2" diameter, 3-blade square pitch propeller which attaches to the shaft with set screws and provides outstanding fluid velocity. All wetted parts are 316 SS for chemical resistance.
This model features a Baldor motor known for quality and reliability. Many custom options are available for our heavy duty flange mount mixers including washdown duty, explosion proof or stainless steel motors, variable speed control (VFD), customized seals, special shafts and alternate impellers. Please contact one of our engineers to quote your specific application needs.
Terms & Conditions:
- FOB: New Albany, IN
- Carrier:
- Shipping Dimensions: Not Available
- Packages: Bundle a mixer and container for your complete mixing solution and receive a package price. Customizations are available. Contact us for quote.
Warranty Information:
1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers.
Motor
- aldor Model or Equivalent VL3510
- FL Amps 12.8/6.4
- Hertz 60
- Horsepower 1
- Insulation Class F
- Enclosure Totally Enclosed Fan Cooled
- Motor Exterior Painted
- Motor Frame 56C Face
- Motor Rpm 1750
- Motor Type Electric
- Phase Single
- RotationTop Wired Clockwise
- Service Factor 1.00
- Voltage 115/230
Mount
- Construction 304 Stainless Steel
- Features 4" ANSI
- Seal 125 PSI Mechanical Seal
Shaft
- Construction 316 Stainless Steel
- Exposed Dimensions 3/4" x 34
Impeller
- Blade Construction Cast
- Bore 3/4"
- Construction Material 316L Stainless Steel
- Diameter 5-1/2"
- Pitch 1:1
- Quantity 1
- Rotation Left Hand
- Set Screw 1
- Style 3-Blade Square Pitch
