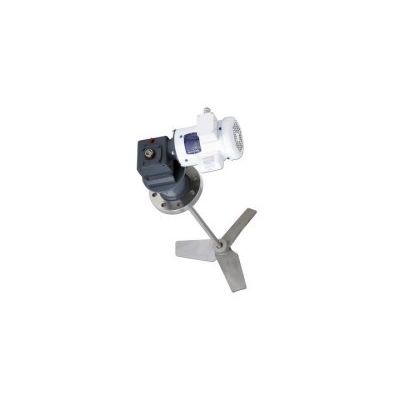

Indco - Model FMG-100T -1 HP Electric Heavy Duty Gear Drive Flange Mount Mixer
INDCO`s deluxe Heavy Duty Flange Mount Mixers are an excellent choice for mixing in large scale process vessels or anywhere sealed mixing is required. Simply the best value in the industry for this type of the mixer, the FMG-100T model features a 304 stainless steel 4" ANSI flange mount design and a dry-running mechanical seal rated 125 psi to full vacuum. This 1 HP totally-enclosed fan cooled model is ready to plug into a standard outlet. The motor requires 115/230 volt, 60 Hz single phase power, and is connected to the 1-1/2" diameter x 72" long mixing shaft by a stainless steel coupler. A heavy duty bearing adds support to maximize shaft stability.
The 10:1 gear reducer vigorously agitates large volumes of light viscosity materials at 175 RPM. At the end of the mixing shaft is a 22" diameter, 3-blade hydrofoil which attaches to the shaft with set screws and provides outstanding fluid velocity. All wetted parts are 316 SS for chemical resistance. This model features a Baldor motor known for quality and reliability. Many custom options are available for our Heavy Duty Flange Mount Mixers including washdown duty, explosion proof or stainless steel motors, variable speed control (VFD), customized seals, special shafts and alternate impellers. Please contact one of our engineers to quote your specific application needs.
Terms & Conditions:
- FOB: New Albany, IN
- Carrier:
- Shipping Dimensions: Not Available
- Packages: Bundle a mixer and container for your complete mixing solution and receive a package price. Customizations are available. Contact us for quote.
Warranty Information:
1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers.
Motor
- Baldor Model or Equivalent : VL3510
- Boston Model or Equivalent : HF721R-10Z-B5-H-P23
- FL Amps : 12.8/6.4
- Gearbox Design : Right Angle
- Gearbox Ratio : 10:1
- Gearbox RPM : 175
- Hertz : 60
- Horsepower : 1
- Insulation Class : F
- Motor Enclosure : Totally Enclosed Fan Cooled
- Motor Exterior : Painted
- Motor Frame : 56C Face
- Motor Rpm : 1750
- Motor Type : Electric
- Phase : Single
- RotationTop : Wired Clockwise
- Service Factor : 1.00
- Voltage : 115/230
Mount
- Construction : 304 Stainless Steel
- Features : 4" ANSI
- Seal : 125 PSI Mechanical Seal
Shaft
- Construction : 316 Stainless Steel
- Exposed Dimensions : 1-1/2" x 72"
Impeller
- Blade Construction : Bolted
- Bore : 1-1/2"
- Construction Material : 316 Stainless Steel
- Diameter : 22"
- Quantity : 1
- Rotation : Left Hand
- Set Screw : 2
- Style : Hydrofoil
- Surface Finish : Mill Finish
