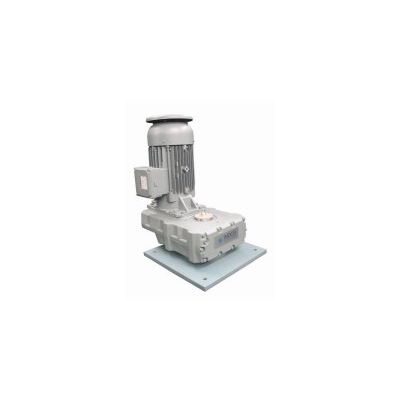

Indco - Model TM-1000 -10 HP Electric Gear Drive Top Entry Mixer with Hydrofoil
Gear-driven top mount mixers are the backbone of large scale liquid processing and production in industries such as waste water, chemicals, paint & coatings, petroleum and many more. The 10 HP INDCO TM-1000 mixer mounts to a support structure or mounting surface above the tank via four bolts and features a parallel helical gear drive with 24:1 gear ratio for quiet operation with maximum efficiency.
The 2 1/4 " X 122” long 316 stainless steel shaft rotates 74 rpm. The standard 48” hydrofoil impeller is secured to the shaft using set screws and keyway with gib key to prevent rotational and vertical movement. The mixer requires 230/460 Volt three phase phase power. This mixer is ideal for batch production or continuous processes in tank volumes up to 10,000 gallons. All wetted parts are 316 SS standard for chemical resistance. Customizations include gear ratio, shaft length, alternate impeller options, and variable speed control. Hastelloy C and other alloys are available as needed for wetted parts. Contact our engineers to assist with sizing and configuring the mixer to your application.
Terms & Conditions:
- FOB: New Albany, IN
- Carrier:
- Shipping Dimensions: Not Available
- Packages: Bundle a mixer and container for your complete mixing solution and receive a package price. Customizations are available. Contact us for quote.
Warranty Information:
1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers.
Motor
- Baldor Model or Equivalent : D11LA4
- FL Amps : 28-25/12.5
- Gearbox Design : Parallel Helical
- Gearbox Ratio : 23:1
- Gearbox RPM : 74
- Hertz : 60
- Horsepower ; 10
- Insulation Class : F
- Marathon Model or Equivalent : C226
- Motor Enclosure : Totally Enclosed Fan Cooled
- Motor Exterior : Severe Duty
- Motor Frame : 215TC
- Motor Rpm : 1710
- Motor Type : Electric
- Phase : Three
- Service Factor : 1.15
- Voltage : 230/460
Mount
- Construction : Steel
- Features : Plate
Shaft
- Construction : 316 Stainless Steel
- Exposed Dimensions : 2-1/4" x 122"
Impeller
- Blade Construction : Bolted
- Bore : 2 1/4"
- Construction Material : 316 Stainless Steel
- Diameter : 48"
- Quantity : 1
- Rotation : Clockwise
- Set Screw : 1/2-13 (2)
- Style : Hydrofoil
