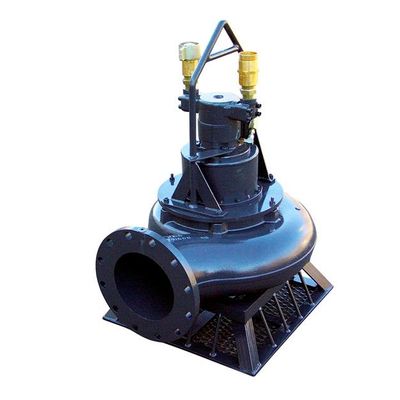

Hydra-Tech - Model S6250 -10 Inch Hydraulic Submersible High Performance Solids Handling Pump
FromHydra-Tech Pumps
The S6250 is a Solids Handling Effluent Pump for use on jobs such as waste treatment, sewer by-pass, barge transfer, municipal lift stations and tank pumping. Heads to 190 feet and flows to 5000 GPM.
Most popular related searches
solids handling pump
solids pump
solids pumping
effluent pumping
lift station
effluent pump
waste treatment
submersible solids handling pump
lift station pumping
lift station pump
- Weight: 739 lbs. (336 kg)
- Height: 43" (109 cm)
- Diameter: 32" (81 cm)
- Discharge Size: 10", 125# ASA Flange
- Inlet Flange: 10", 125# ASA Flange
- Solid Handling: 5" (13 cm)
- Hose Ports: 1-1/4" Code 61 Flange or 1-1/2" NPT (F)
- Pump Body: Ductile Iron
- Hose Ports: Ductile Iron
- Elastometers: Buna N (Std)
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max 90 GPM (340 LPM)
- Operating Pressure: Max 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
