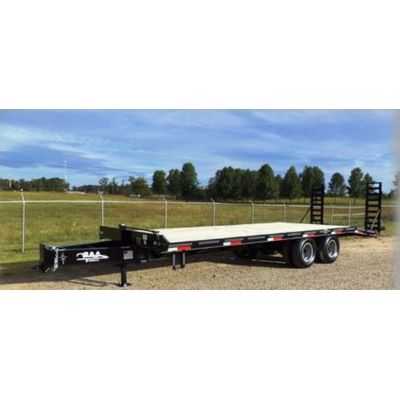

B&A Trailers - Model 8.525T10T -10 Ton Tag-A-Long Deck-Over Equipment Trailers

• Beavertail: 5` self-cleaning angle cleats
• Ramps: 5` spring assist, angle cleats (stand-up)
• Side rail: 6" channel w/stake pockets & rub rail
• Jack: Ram 12K drop leg
• Coupler: adjustable H" plate hitch w/3" pintle eye
• Axles: (2) 10,000 lb. spring suspension, oil bath with electric brake
• Wheels: 16" dual, 8 lug
• Tires: (8) - 235 80 R16 E, 10 ply radials
• Spare Tire: mounted front bulkhead
• Boarding Step: Front driver side
• Storage: tool tray w/ mesh bottom in tongue & locking lid
• Floor: 2" x 8" pressure treated pine
• Safety chains: (2) 3/8" w/ hook and closures
• Wiring: run in 1" conduit tubing with junction boxes
• Lights: LED
• Paint: cleaned, primed and painted 100% Black (optional color)
• Warranty: 1 year with MSO provided

Standard Models:
(*) full flatbed (#) center torsion twist pipe (^) beam truss (~) wide spread suspension

Ramp Models

• 8.525T10T (20` flatbed + 5` beavertail)
• 8.528T10T (23` flatbed + 5` beavertail)
• 8.530T10T (25` flatbed + 5` beavertail) (#~)
• 8.532T10T (27` flatbed + 5` beavertail) (# ~)
• 8.535T10T (30` flatbed + 5` beavertail) (# ~)

Flatbeds

• 8.532GN10THS (32` flatbed) (* # ~)
• 8.536GN10THS (36` flatbed) (* # ^ ~)

Options:

• wood beavertail/ramps
• flipup beavertail
• stand up ramps
• dual jacks
• spare tire & mount
• load lights
• boarding step
• side mount tool box
• optional colors
• torsion axles
• oak floor
• electric over hydraulic brakes
• air brakes
• pierced frame design
• winch track and straps
• Hutch suspension
• extra boarding step(s)
• 8 ft. ramps and storage chute
• locking lid on tool tray
• custom bed length
• hydraulic HD ramps

10K Upgrades Available:

• 10K Heavy Duty Axles

12K Upgrades Available:

• 12K axles
• 235 85 R 16 G (14 ply radials)
