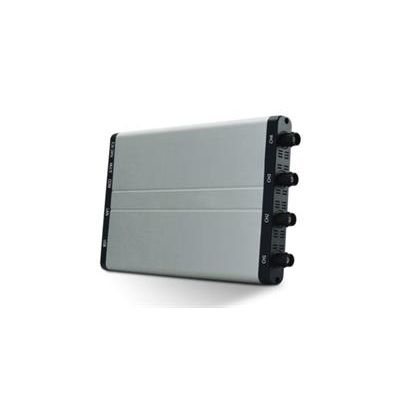

Berkeley - Model P4017 -100 MHz USB Oscilloscope
The BNC Model P4017 USB Oscilloscope offers the user a compact 4-channel, 100 MHz, 1 GS/s portable oscilloscope that connects directly with your PC through a standard USB port. The P4017 provides 100 MHz bandwidth for characterization and troubleshooting of fast circuits. The real-time sample rate is 1 GS/s and the scope can be triggered in various modes - edge, video, slope, pulse, and alternate. The included software offers a convenient method for operating the scope, saving settings, and providing screen images to colleagues. Call or email for your demo today.
Most popular related searches
- Classroom Education
- Engineering Training
- Circuit Function Testing
- Debug Designs / Design Reviews
- 4 Channels
- Max 10M Record Length
- USB Data Transmission
- USB Bus Powering
- LAN Remote Control
- Ultra-Thin Body Design, Easy Portability
- SCPI Supported
- Bandwidth: 100 MHz
- Channels: 4
- Sample rate: 1 GS/s
- Record length: 5M
- DC Gain Accuracy: ±3%
- DC Accuracy: Average ≥16: ±(3% reading + 0.05div) for △T
- Trigger Type: Edge, Pulse, Video, Slope, and Alternate
- Trigger Mode: Auto, Normal, and Single
- Power source: 5.0 V/1 A
- Dimensions (H x W x D): 190 × 120 × 18 (mm)
- Weight: 0.3 kg
*Subject to change without notice.
