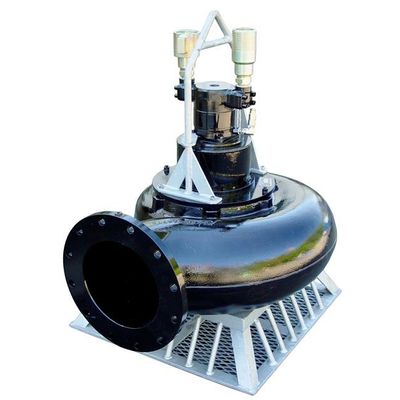

Hydra-Tech - Model S6300 -12 Inch Hydraulic Submersible High Performance Solids Handling Pump
FromHydra-Tech Pumps
The S6300 is a highly efficient, high volume, solids handling pump. Typical uses for this pump would be sewer by-pass, barge transfer, municipal waste lagoon and tank pumping. Also used as a high volume feed pump for fire suppression systems. Heads to 110 feet and flows to 8500 GPM.
Most popular related searches
solids handling pump
fire suppression system
solids pump
solids pumping
fire suppressant
municipal waste
fire suppression
submersible solids handling pump
municipal lagoon
fire pump system
- Weight: 979 lbs. (444 kg)
- Height: 45" (114 cm)
- Diameter: 39.5" (100 cm)
- Discharge Size: 12", 125# ASA Flange
- Inlet Flange: 12", 125# ASA Flange
- Solid Handling: 5" (12 cm)
- Hose Ports: 1-1/4" Code 61 Flange or 1-1/2" NPT (F)
- Pump Body: Ductile Iron
- Hose Ports: Ductile Iron
- Elastometers: Buna N (Std)
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max 90 GPM (340 LPM)
- Operating Pressure: Max 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
