Custom Dains - Model Type 304/316 -12" Stainless Steel Drain
FromCustom Drains
Custom Stainless Drains and Trench Drains are the perfect choice for use in food processing plants where a trough drain is required and where sanitation is of the utmost concern. Fabricated in T304 or 316L Stainless Steel (Made in the USA) with radius corners are easy to clean and fully comply with sanitary standards across the world. Our stainless drains are available in a wide variety of sizes, and come with a number of options for the top grate/cover.
Most popular related searches
stainless steel plate magnet
food process plant
drain outlet
basket strainer
trench drain
drain cover
stainless steel strainer
stainless basket strainer
strainer
steel strainer
Square Drain
Standard Drain Features - Type 304/316 Stainless:
- 12" x 12" SQUARE X 1/2" Stainless Steel plate.
- 12 Gauge Body (Seamless, Spun).
- 9.75" Diameter x 1/2" thick SOLID removable drain cover.
- Heavy Duty traffic* - 10,000#
- 6" deep x 9.75" diameter drain sump, made of Seamless Construction with large radius corners for easy cleaning and sanitizing.
- Concrete setting ring made of 12 GA SS for anchoring into the concrete slab.
- 4" Stainless steel drain outlet 4" Long
- One (1) stainless steel perforated strainer basket.

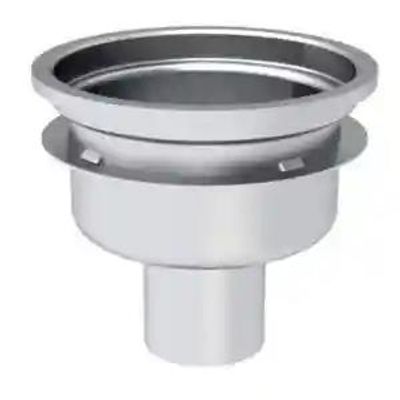

Round Drain
Standard Optional Features:
- 12” Round Top x 1/2” Stainless Steel plate
- Outlet Size: 2” 3” 6” 8”
- Side Outlet
- Low Profile
- Deep Sump
- Locking Cover Plate
- 2nd Strainer in Outlet
- Trap Primer
- Membrane Clamp
- Sealed (Air Tight) Cover Plate
*Heavy traffic in accordance with ASME A112.6.3 Standards 10,000#
