- Removal of CO2 and moisture from air (air pre-purification) and other gases.
- Separation of enriched oxygen from air.
- Removal of mercaptans and hydrogen sulphide from natural gas.
- Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)
- Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
- Removal of n-chained compositions from aromatics.
- Production of bulk oxygen in PSA units.
- Production of medical oxygen in small scale oxygen concentrators.
Shenzhen Chem Enviro Technology Co., Ltd
- Home
- Companies
- Shenzhen Chem Enviro Technology Co., ...
- Products
- 13X Molecular Sieve
13X Molecular Sieve

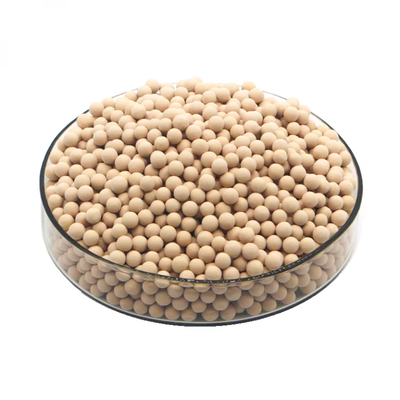

Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger. It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.
Most popular related searches
molecular sieve
oxygen concentrator
H2S
mercaptan
H2S gas
mercaptan control
air purification
H2S control
pelletizer
pelletizing
CAS NO.: 1318-02-1
Appearance: Sphere and Pellet
Standard Packaging: 25 KG/Carton box,25 KG/Carton drum,150 KG/Steel drum
Delivery Time: 7-10 days
Quality Insurance: National Standard HG/T 2690-2012
20” GP Load :9-13.5 Tons 40” GP Load:18-27 Tons （Palletized）
Typical Chemical Formula
Na2O Al2O3 2.45 SiO2 6.0 H2O
SiO2: Al2O3 ≈2.6-3.0
Regeneration
Molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250 -300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process
Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated
