e-con Systems - Model e-CAM160A_MI298_MOD -16MP Sony IMX298 AutoFocus Camera module

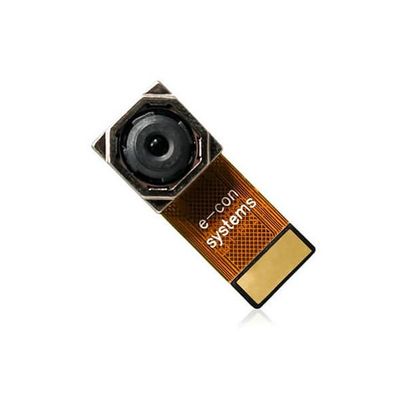

e-CAM160A_MI298_MOD is a high performance, 16MP color Autofocus 4-lane MIPI CSI-2 camera module. This small form factor camera module is based on 1/2.8" Sony Exmor RS IMX298 CMOS image sensor with 1.12μm pixel size. The e-CAM160A_MI298_MOD is a flex PCB camera module and VCM Autofocus lens is soldered directly on to the board.
Most popular related searches
- 16MP SONY Color camera with 4-lane MIPI CSI-2 interface
- Focus Type - Auto Focus (VCM driven)
- 1/2.8" Optical Form-factor
- Output format: RAW 10 bit / 8 bit
- Maximum Image Transfer Rate :
- Resolutions : Frame Rate (fps)
- Full HD (1920 x 1080) : 60 fps
- 2K (2048 x 1080) : 30 fps
- 4K (3840 x 2160) : 30 fps
- 16MP (4656 x 3496) : 30 fps
- Temperature Range
- Operation: -20° to 70° C
- Size in mm (L x W x H) : 22.1mm x 8.8mm x 5.06mm
- Compliance
- FCC
- RoHS
- Sensor : Sony IMX298 CMOS Image Sensor
- Focus Type : Auto focus
- Sensor Resolution : 16MP
- Chroma : Color
- Shutter type : Electronic Rolling Shutter
- Optical Format : 1/2.8" Optical format
- Output Format : Uncompressed UYVY format and Compressed MJPEG format
- Focus Distance : 100mm to Infinity
- Pixel size : 1.12umx 1.12pm
- Sensor Active Area : 4656(H) X 3496(V)
- Array Size : 4656(H) X 3496(V)
- DFOV : 16MP-78.4*
