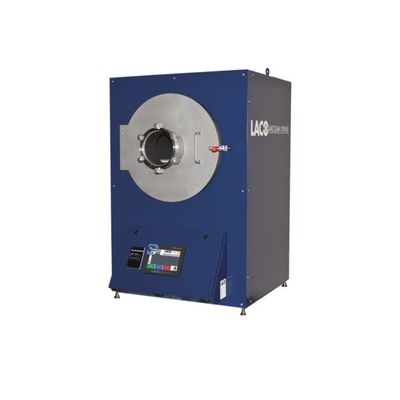

LACO - Model LVO Series -18Inch Cylindrical Vacuum Oven

• Integrated system controller and vacuum pump
• Fast, efficient conduction heating method with adjustable internally heated shelf
• Real-time vacuum and temperature trending graphs via color touchscreen
• Data log temperature and vacuum readings to USB drive
• Configurable data units — vacuum and temperature

POWERFUL SYSTEM CONTROLLER

LVO Vacuum Ovens come with our powerful HVC-2500 Heat & Vacuum Controller designed specifically to support a wide range of thermal testing features including:

• Easy to use 7-inch color touchscreen display
• Five configurable test recipes with a maximum of 20 steps per recipe
• Programmable evacuation, vent, hold, and temperature/heat conditions
• Vacuum and temperature test data with graphs and reports
• Remote communication and control via RS232 serial interface or Ethernet port
• Data stored internally on SD card and downloadable via USB drive

• Chamber: : 18″ DIA X 24″ D horizontal cylindrical
• Sensors: : 3 ea RTD sensors (top of heated shelf, heater elements, and over temp)
• Vacuum Valve: : Electric (automated)
• Configuration: : Benchtop  |  Mobile cart
• Door Material: : 304 stainless steel  |  304 stainless steel with 6″ glass viewport  |  Clear acrylic with internal LED lighting
• Heated Control Zones and Shelves: : Single zone, internally heated, adjustable aluminum shelf (16″ W X 22″ L) up to 200 °C
• System Voltage: : 120 VAC  |  208-240 VAC
• Vacuum Pump: : No vacuum pump  |  Two-stage rotary vane vacuum pump (7 or 14 CFM)  |  Dry vacuum pump (7 or 14 CFM)
• Vacuum Level: : Industrial vacuum (ATM to 1 Torr)  |  Medium vacuum (ATM to 10-3 Torr)
•
