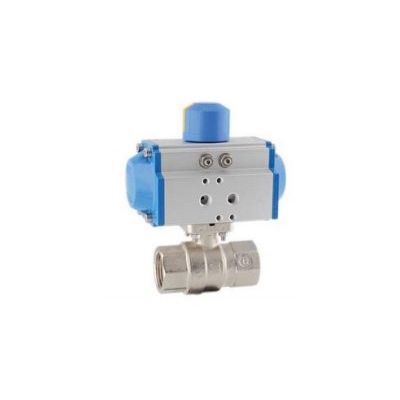

TORK-PAV - Model 901 -2/2 Way Pneumatic Actuated Brass Ball Valves

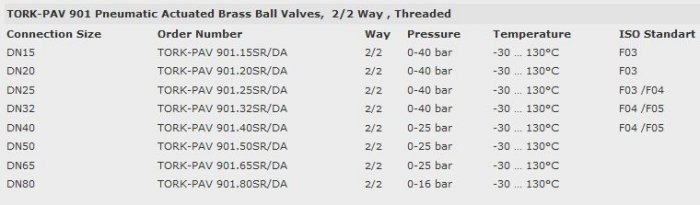

Application:Liquid, gas, air, water, hot water, steam. Type No: PAV 901…DA / PAV 901 SR. On Request:Limit switch box, positioner, namur solenoid valve, manuel override. Actuator:RA…DA Double Acting Actuators / RA…SR Single Acting Actuators. Supply Air: 4-6 bar, Stroke adjustment. Valve Body Material:Brass . Connection :Threaded .  Pressure: PN40(1/2`…1 1/4),PN25 ( 1 1/2`…2 1/2`) ,PN16 (3`). Temperature: .-30 … 130°C. Size: 1/2` … 3`
