Why Use Single Acting Pneumatic Actuator? The preferred actuator type is the single acting actuators (spring return actuators) where the valve is requested to return to the first position when the power is cut. The spring return actuator is generally preferred in systems requiring safety. ion of spring return actuator: The torque values of the ed actuator at P: 6 bar control pressure are given in Nm. In this table, according to the ed values of the ed model (according to 90º) Nm values of the appropriate valve should be ed. Note: Please refer to the values in the above table when ing the valve for the actuator. The torque of the valve must be 25% less than the actuator torque.

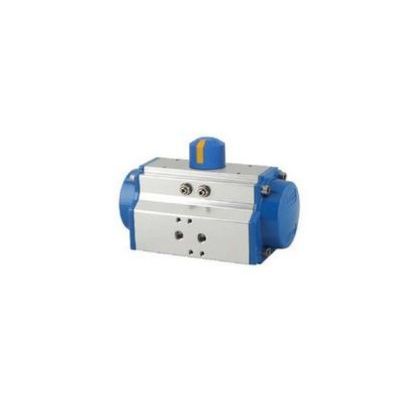

Application :  Ball Valve, Butterfly Valve, Plug Valve, Dampers on-off / proportional control. Size :  RA 32 DA … RA 350 DA. Supply Pressure Air :  4 - 8 bar. Output Tork Value :  9 Nm … 5162 Nm. Body :  Extruded Aluminium / Cast Aluminium. Caps and Pistons :  Die cast Aluminium. Temperature : .-10ºC … 80ºC. Valve Connection :  ISO 5211 / DIN3337 standard. Limit Switch Connection : Namur standard, VDI / VDE3845. Positioner Connection : Namur standard, VDI / VDE3845. Solenoid Valve Connection : Namur standard, VDI / VDE3845. Stroke Adjustment :  Both directions open and close positions ( ±5%). Change to Single Acting :  Add springs.

S1000 Series Servo Assist Solenoid Valve are large size solenoid valves operating at zero differential pressure. The inlet and outlet pressure difference is minimum zero bar and maximum 16 bar. It is pilot operated and normally closed. 3/8 ”.. 1” S1000 solenoid valves are suitable for air, water, gas and liquid fluids. 1 1/4 ”… 2” S1000 solenoid valves are suitable for water and liquid fluids. S1000 Series Solenoid Valves are also called zero series solenoid valves. They can work with fluids in the line min. Δp = 0 bar. They are closed systems and work if the inlet and outlet pressure are equal in the system. Sample: P1 inlet pressure: 2 bar. Let's consider a line with P2 outlet pressure: 2 bar. Differential pressure is P1-P2 = 0 bar.

S1010 General Purpose Solenoid Valves are available in sizes between 1/8 ”and 2”. It is suitable for air, water and gas fluids. It can be used in various sectors such as treatment, dye industry, cement, on-board equipment, food or sugar. Solenoid valves are the most used control elements on fluids. The tasks of solenoid valves can be summarized as providing flow, shutting off the flow, adjusting the dosage or mixing the two fluids. Solenoid valves are preferred in process lines due to their compact structure, low cost and long life. It is recommended to use solenoid valves with filters. If there is a fluid with particles such as sand and dirt in the fluid used, this will prevent the valve from working propoerly and shorten its life. Solenoid valves can be installed in any position without affecting its operation; coil should be preferred in vertical up position.

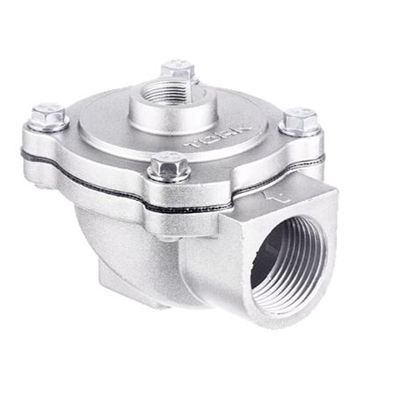

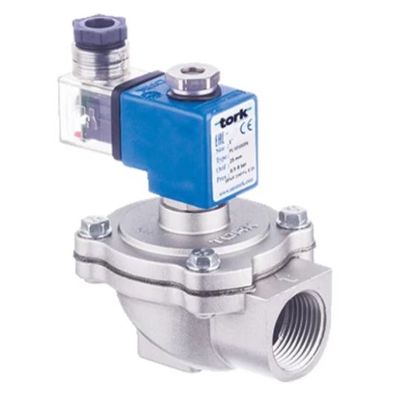

Application : Compressed Air , dust collector services. Size : 3/4"..3". Working Pressure : 0,5…8 Bar (3/4”…1 1/2”); 3…8 Bar (2”…3”). Coil, Tube : Stainless Steel. Body : Aluminum. Seal : NBR, Viton, thermoplastic (3/4”…1 1/2”); NBR, Viton (2”…3”). Fluid Temperature : -40°C…120 °C ( with thermoplastic diaphragm ), -10°C…80 °C ( with NBR diaphragm ), -10°C…160 °C ( with Viton diaphragm ). Position : Normally closed. Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC. Protection Class : IP65 (ISO 60529), on request IP68.

Application : Compressed Air , dust collector services. Size : 3/4"..3". Working Pressure : 0,5…8 Bar (3/4”…1 1/2”); 3…8 Bar (2”…3”). Coil, Tube : Stainless Steel. Body : Aluminum. Seal : NBR, Viton, thermoplastic (3/4”…1 1/2”); NBR, Viton (2”…3”). Fluid Temperature : -40°C…120 °C ( with thermoplastic diaphragm ), -10°C…80 °C ( with NBR diaphragm ), -10°C…160 °C ( with Viton diaphragm ). Position : Normally closed. Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC.

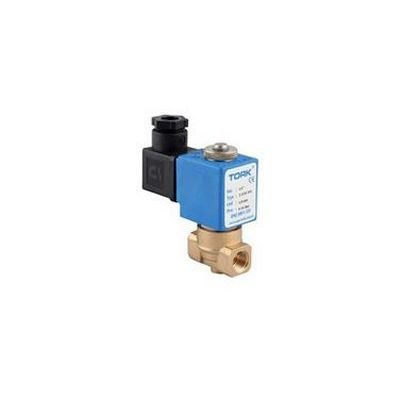

Application : Air, water, gas. Size :  1/8" … 2" BSP (on request NPT). Pressure :  0,5 bar … 16 bar (0 … 16bar - 1/8"-1/4"). Tube : Stainless steel
Body :  Brass. Seal : NBR, on request EPDM. Temperature :  .-10°C…80 °C. Position :  Normally Closed. Coil Voltage :  230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC. Protection Class : IP65 and Exproof models.

Application : Steam, hot water. Size :  1/2`…….2` BSP (on request NPT). Pressure :  0,5 bar…5 bar (1/8`, 1/4`: 0 … 5 bar). Tube and internal part : Stainless Steel. Body :  Brass. Seal : 1/8,1/4` Viton  ; 3/8`...1` PTFE , 1 1/4`...2` EPDM. Temperature :  .-10°C…160 °C ( 1 1/4` … 2`, 140°C). Position :  Normally Closed. Coil Voltage :  230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC. Protection Class : IP65 and Exproof models.

Specially designed for quarter turn operating applications such as Ball, Butterfly, Plug valves, Dampers and similar usages. Its variation in wide range of output of torque control options fit your specific requirement. High grade aluminium alloy for housing provides compact and low weight
High corrosion resistance due to hard anodizing on inside & outside and polyester coating on external surface. Easy mounting base standard to ISO 5211 (F03/F05/F07) Handwheel for manual operation. Standard 4 limit switches Long Life- Cycle.

Materials : Steel ,Aluminium alloy, albronze. Enclosure : Weatherproof enclosure IP67, NEMA 4 and 6. space heater 7…10W (110/220V AC) anti-condensation. Manuel Override : Declutching mechanism located outside the body. Power Supply : 220V AC, (on request 110 V AC and 380V, 440 V AC three-phase circuit). Duty cycle (on/off) : S2, 100% max. 30 min. Duty cycle (Modulating) : S4, 50 % max 300 ~1600 start/hour.
