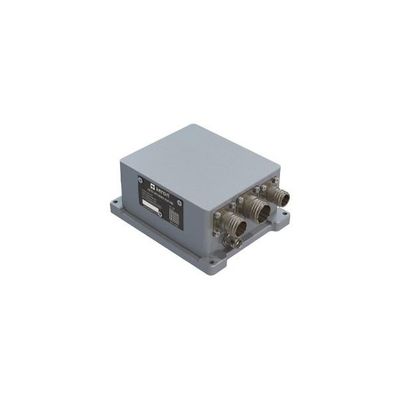

Octantis - Model NS6300S -2 Inertial Navigation System
The Octantis 2, OCT2-NS6300S is a rugged Inertial Navigation System, equipped with a high-end tactical class IMU and qualified to MIL-STD-810G & MIL-STD-461E standards incorporating vibration and EMI rejecting features in design. The Octantis 2 INS features Aeron’s KF based parameter estimation engine which delivers superior GPS independent position performance. The NS6300S includes an integrated multi-constellation (GPS/GLONASS/ GALILEO) GNSS receiver with SBAS (GAGAN/QZSS) augmentation.
The system has a variety of isolated interfaces for communication and integration with the vehicle electronics. The system has a provision for interfacing vehicle odometer (Pulse input/CAN bus) and externally providing aiding data from other external sensors. The system has Ethernet interface for integration with external control and display equipment. The system also offers unmatched configurability in update rates, installation configurations and external aiding options.
The INS system can be used as primary or secondary INS in armored trucks, combat vehicles, special purpose vehicles and for marine navigation applications.
High-end Tactical Class Gyros
0.8 deg/hr. to give high performance position data in GNSS denied environment
Multimode Kalman Filter
For precise estimation of attitude, position and velocity data
Precise Attitude & Heading Data
To enable its use in vehicle navigation
Position accuracy
<2% DT with odometer, precise positioning, mapping and surveying
Multi-Channel, Multi-Constellation GNSS
Supports L1, 72 Channels with SBAS capability
Communication
Isolated Ethernet/CAN/Serial Interfaces
Rugged Design
Complaint with MIL-STD-461F MIL-STD-810G standards
