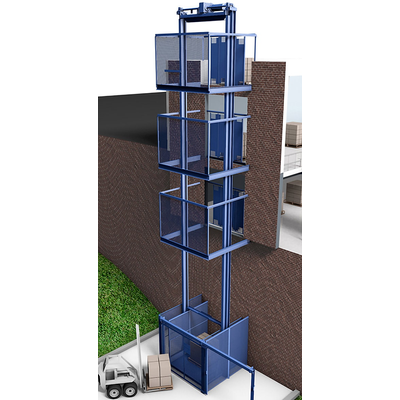

Pflow - Model M Series -2-Post Mechanical Vertical Lift

These versatile 2-post vertical reciprocating conveyors (VRCs) are ideal for high-speed and/or high-cycle automated systems.

The M Series’ carriage has a standard size of 12′ wide by 10′ long and is lifted and lowered by heavy-duty roller chains. The 2-post M Series VRC is available in cantilever or straddle configurations.

M Series Overview

• Load capacity up to 10,000 lbs
• Standard carriage size of 12’ x 10’
• Unlimited vertical rise
• Standard travel speed of 25 feet per minute (FPM)
  • Up to 400 FPM available
• Unlimited / continuous cycles per hour
• Indoor or outdoor use
• Lifetime structural warranty
• Conforms to ASME B20.1 Safety Standards

Advanced safety features are built into each M Series VRC

• A limit switch controls travel of the carriage. When the switch is tripped, or power is lost, the motor shuts off and the mechanically actuated brake engages
• Chain sensors shut down the lift if chain tension is lost
• Certified safety cams prevent carriage descent in the unlikely event of a chain failure
• Chain tensioners and guides prevent chains from
  jumping on sprockets

• Carriage is lifted and lowered by heavy-duty roller chain attached to a synchronized mechanical lifting mechanism mounted on top of the 6” guide columns
• Quality construction, reliability, and long-term performance
• Carriage, straddle, or cantilever designs available
• Transports large, heavy loads between two or more levels
• Ideal for high-speed or high-cycle automated systems
• Hot-dipped galvanized or epoxy finish available for outdoor or wash-down environments
