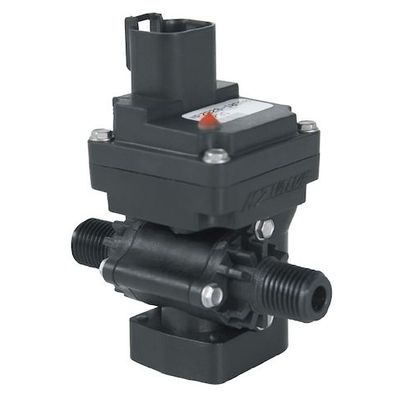

KZValve - Model Zipvalve -1/4 - 3/8 Inch -2-Way Ball Valves
Designed with extreme precision in mind. Instantaneous On/Off control with a standard port ball valve for unparalleled reliability and peace of mind. 1⁄4" and 3/8" standard port motorized ball valves. Lid Options: Deutsch receptacle or M12 connectors. ZIPVALVE - ¼"-?".
Inlet/Outlets:
1⁄4" ZIPValve 1⁄4" and /8" push-to-connect, or 1⁄4" MPT fittings
3/8" ZIPValve 1⁄2"push-to-connect and/or QD fork connection
Valve body: Nylon
Ball: 316 stainless steel
Stem: 316 stainless steel
Valve seat: PTFE
Stem seal: Viton™
Compact design weighing only 4 ounces, which allows for more options when mounting
Valves are made for Actuation with a KZValve Waterproof EH8 Series Actuator, providing longer valve and actuator life
Robust, quarter-turn electric ball valves are highly reliable compared to solenoid and plunger valve
Available in two control options:
Simple 12/24 volt on/off actuation Deutsch receptacle - 12VDC only M12 lid connectors - 12VDC or 24VDC
Operating as an individually addressed valve on a LINbus system (M12 only)
- Instantaneous On/Off control
- Waterproof
- Low power consumption
- Compact design
- LED open/close indication
