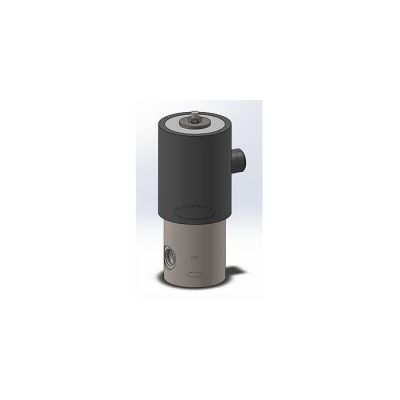

Clark-Cooper - Model EP70 Series - 1,500 PSIG MAX -2-Way High Pressure Solenoid Valves

The powerful, full port EP70 is great for a wide range of liquid flow rates and temperatures. This pilot assisted, direct operated valve can be configured with a UL/CSA certified explosion proof coil for Class 1, Division 1, Group A-D locations. The EP70 has 1/2` NPT or SAE connections, and allows inlet pressures of up to 5000 psig. There is no minimum required pressure differential for opening/closing. The combination of a high power coil and larger internal bleed orifices, as compared to our other EH Series products, provides for less sensitivity to fluid viscosities and particulates. The EP70 can be used with water, fuel oils, flammable liquids and other liquids compatible with the construction materials. Filters are recommended for all applications.
