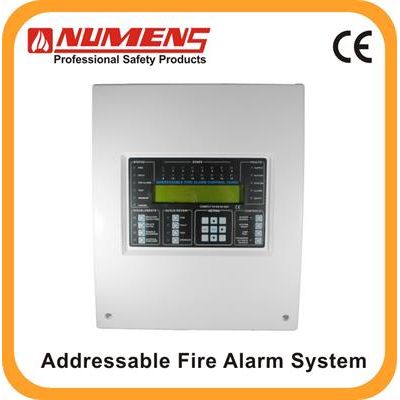

Numens - Model 6001-02 -2016 top supplier EN UL approved 2-loop addressable Fire Alarm Control Panel
The 6001-01 analogue addressable control and indicating equipment forms the central part of a fire detection and alarm system. The fully networkable 6001-01 is compatible with Numens addressable devices and can also be connected to non-addressable devices when used with addressable input modules. Default configuration programming facilitates out-of-box installation and rapid commissioning. A powerful and versatile cause-and-effect based programming tool enables rapid customization with software for sites that require special operating features. The 6001-01 comes standard with features that allows flexibility and expandability. The 6001-01 control panel provides fire detection and alarm system designers with a premium product for life safety and property protection applications.· Single loop
· Networkable, up to 4 control panels
· Supports up to 125 addressable devices per loop
· Automatic device detection on start-up
· Automatic device type-code verification
· 2 independently programmable non-addressable sounder output circuits
· 2 programmable relay outputs
· Fault relay output
· Remote disable and evacuation inputs
· Backlit LCD display providing 4 rows of 40 characters
· 16 zone fire alarm LED indicators
· 3000 event history log
· Attractive designer enclosure available in white
· Recessed mounting
· Easy installation
|
|
6001-01 |
|
Operating voltage |
AC (85 ~ 260) V / 50/60 Hz |
|
Mains supply current limit |
1.5 A @ AC 230 V |
|
Mains supply fuse |
4 A / AC 250 V slow blow (20 mm) |
|
Mains supply fault threshold voltage |
≤ AC 60 V |
|
Power supply |
2.2 A @ DC 28 V |
|
Standby battery capacity (2 × DC 12 V) |
7.2 Ah |
|
Maximum battery current draw |
1.5 A @ maximum operating temperature |
|
Battery fuse |
6 A resettable (electronic fuse) |
|
Battery fault threshold voltage |
< DC 20 V |
|
Quiescent current |
100 mA @ 28.5 V |
|
Addressable loops |
1 |
|
Number of connected devices per loop |
125 |
|
Loop current (max) |
400 mA |
|
Loop monitoring |
Open- and short-circuit |
|
Configurableaudio/visual alarm groups (max) |
512 |
|
Non-addressable audio/visual alarm device driver |
800 mA |
|
Non-addressable audio/visual alarm end-of-line resistor |
10 k? |
|
Alarm zone monitoring |
Open- and short-circuit |
|
Alarm zone voltage (max) |
DC 27.5 V |
|
Alarm zone fuse |
1.1 A resettable (electronic fuse) |
|
Number of programmable output relays |
2 |
|
Ancillary fire C/O relay |
2 x (1.0 A @ DC 30 V / 1 A @ AC 240 V) |
|
Ancillary fault N/C relay |
1.0 A @ DC 30 V / 1 A @ AC 240 V |
|
Auxiliary supply |
DC 28 V @ 300 mA |
|
Evacuation start / stop input |
Non-latching, voltage-free |
|
Remote reset input |
Non-latching, voltage-free |
|
Number of networked panels |
4 |
|
Terminal wiring |
(0.4 ~ 2.5) mm2 |
|
Operating temperature |
(-5 ~ +40) °C |
|
Operating humidity |
(0 ~ 95) % RH, non-condensing |
|
Storage temperature |
(-25 ~ +80) °C |
|
Storage humidity |
(0 ~ 98) % RH, non-condensing |
|
Dimensions (h × w × d) |
(420 × 337 × 99) mm |
|
Weight (excluding batteries) |
4.0 kg |
|
aRequires 6001-06 loop expansion card. |
|
|
EN 54-2 a |
EN 54-4 b |
|
|
6001-01 |
ü |
ü |
|
6001-02 |
ü |
ü |
|
6001-05 |
ü |
ü |
|
aEN 54-2 Control and indicating equipment b EN 54-4 Power supply equipment |
||
