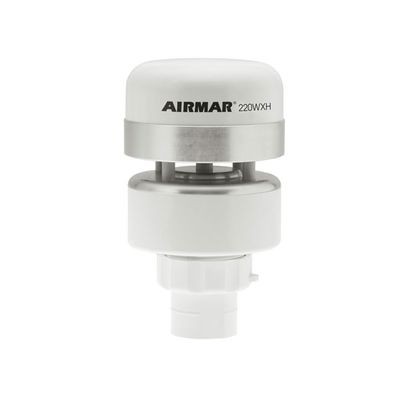

AIRMAR - 220WXH WeatherStation® Instrument
Heater for Commercial Fishing in Ice-prone Areas.The patented 220WXH is Airmar’s choice for commercial-fishing, weather-monitoring applications in ice-prone areas. Designed with a highly effective, thermostatically controlled, heating system, it operates effectively in cold climates. Feature rich in a durable, rugged, small-footprint housing that is IPX6 rated, the 220WXH calculates the theoretical wind speed and direction based upon the apparent wind, speed of the vessel, and vessel heading.
The 220WXH has an internal 10 Hz GPS and three-axis electronic compass. These sensors gives heading, position, speed-over-ground, and course-over-ground functionality that is required for theoretical wind-data processing and mobile applications. A 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data.
Ultrasonic measurement of apparent and theoretical wind speed and direction
Thermostatically controlled heater element
Barometric pressure
Air and wind chill temperature
GPS position, speed over ground, course over ground
Three-axis, solid-state compass with dynamic stabilization
Three-axis rate gyro supplies rate-of–turn data
Three-axis accelerometer for best-in-class pitch and roll information
Housing rated IPX6 for water-ingress protection
Data output via a single cable (various lengths available)NMEA 0183 serial protocol over RS-422 standard interface or RS-232 interface
The 220WXH cannot be used with an NMEA 2000® CAN bus network.
Weight: 350 g (0.8 lb.)
Wind Speed:
Range: 0 to 40 m/s
Accuracy: 5% at 10 m/s at 4 angles
Resolution: 0.1 m/s
Calculations: User configurable damping
Wind Direction:
Range: 0 to 359.9°
Accuracy: ±3° at 10 m/s
Resolution: 0.1°
Calculations: User configurable damping
Air Temperature:
Range: -40 to 80°C (-40 to 176°F)
Accuracy: ±1.1°C at 20°C
Resolution: 0.1°C
Barometric Pressure:
Range: 300 to 1100 hPa
Accuracy: ±0.5 hPa at 25°C (or better)
Resolution: 0.1 hPa
Three-axis Compass:
Range: 0 to 359.9°
Accuracy:
1° static heading
2° dynamic heading
Resolution: 0.1°
Pitch and Roll:
Measurement Type: MEMS
Range: 50°
Accuracy: ±1° in range of ±30°
Resolution: 0.1°
GPS Position Accuracy: 3 m (10') CEP
Operating Temperature Range:
WeatherStation: -25 to 55°C (-13 to 131°F)
Heater: -40 to 55°C (-40 to 131°F)
Heater cycles on when sensor reaches 1°C
Power:
Supply Voltage: 24 VDC
Supply Current: <38 mA (<0.9 W) at 24 VDC
Heater Supply Current: <2.5 A (<60 W) at 24 VDC
Communications:
Available Interface: Serial RS-232, Serial RS-422
Available Protocol: Comma delimited ASCII, NMEA 0183
Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Mounting-thread Size on Base: Standard 1"-14 UNS (3/4" NPT optional)
Certifications and Standards: CE, IPX6, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Note: Cables sold separately
