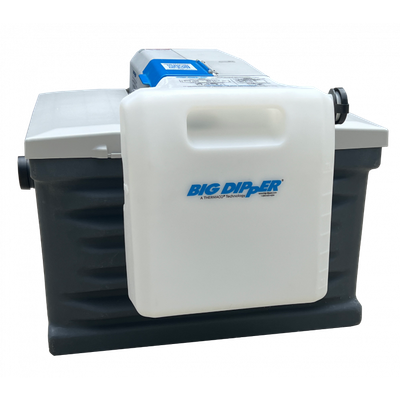

Thermaco Big Dipper - Model W-250-IS-T -25 GPM Essential Automatic Grease Removal Device
Thermaco specializes in the design, manufacture, and supply of grease interceptors under its Big Dipper brand. These interceptors are essential for commercial kitchens and food service establishments to manage and treat wastewater by effectively separating fats, oils, and grease (FOG) before they enter the wastewater system. Typical materials used include stainless steel, which provides durability and resistance to corrosion, key for minimizing maintenance. Their product range often includes advanced technology solutions to simplify cleaning and maintenance, such as automated self-cleaning features. Additionally, Thermaco offers a variety of related accessories and replacement parts to support their systems and ensure efficient operation. Customers can benefit from their robust distribution network and technical support resources, dedicated to assisting with installation and compliance with local code requirements.QUALIFIES FOR FREE SHIPPING VIA UPS GROUND IN CONTIGUOUS US ONLY
- Analog timer allows fexible scheduling of skim cycle.
- Rugged polyethylene exterior has a lifetime warranty.
- Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.
- Compact footprint.
- Two (2) No-Hub Connectors provided.
- 1 Year Warranty on electrical components
Materials:
Exterior: Rotationally Molded Polyethylene
Interior: Rotationally Molded Polyethylene
Electrical: 115 VAC, 50/60 Hz, 1173 Watts (10.2 Amps)*
Maximum Inlet Flow Rate: 25 GPM (1.58 l/s)
Number of Skimming Wheels: 1
Skimming Rate: 9 Pounds Per Hour (4.08 Kg Per Hour)
Grease Retention Capacity: 56.4 Pounds (25.6 Kg)
Internal Solids Strainer Capacity: 1.85 Gallons (7 L)
Product Weight: 48 Pounds (21.7 Kg)
Thermaco Big Dipper Model No. W-250-IS-T, rotationally molded polyethylene tank automatic self-cleaning grease and oil recovery separator(s) for floor mounted or partially recessed installation, rated to ASME A112.14.3 and/or PDI-G 101 standards at 25 gallons per minute (1.58 liters per second) peak flow with 56.4 Pounds (25.6 Kg) of grease capacity and including as an integral part of the unit, 2” (50 mm) inlet/outlet, 1 rotating gear oleophilic/hydrophobic skimming wheel assembly for automatic grease/oil removal, flow control device, self-regulating electric immersion heater with thermostatic control, 1” (25mm) vessel vent, integral gas trap, analog control for programmable operation, field reversible motor assembly and grease/oil sump outlet, fully removable polymer lid with magnetic lid tensioners, internal polymer/stainless steel strainer basket for collection of coarse solids, polymer wiper blade unit and a separate gasketted removable grease and oils collection container with carry handle and pouring spout. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with overload protection. Two (2) no-hub connectors for plumbing connection provided.
*Electrical Variations
W-250-IS-T: 115V 50/60Hz, 1173 Watts (10.2 Amps)
W-250-IS-T-E: 230V 50/60Hz, 1173 Watts (5.1 Amps)
Unit may also be listed as W250IST, W-250IST, W250-IS-T, W-250-T, W250T, 250-IS-T or 250IST
