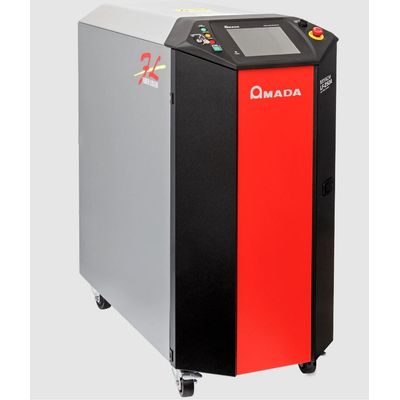

AMADA - Model LF-250A Fiber -250 W Laser Welder
Drawing on its extensive experience in pulsed Nd:YAG micro welding, AMADA WELD TECH’s LF-250A fiber laser welder offers the precise control needed for small component welding, penetration welding of metals and fine cutting. A large touchscreen enables clear visibility of process schedule parameters, and an intuitive user interface enables quick and easy programming. The laser is available in both single and multi-mode configurations and may be operated in either pulsed or cw mode ensuring application success across a broad range of production requirements.
- Focus spot sizes down to 20 microns
- Penetration depth up to 0.025” in steels
- High-performance, highly flexible controller board that enables fine control over output parameters
- Excellent power stability
- Simple, intuitive user interface
Technology: Yb:fiber
Average Power: 250 W
Beam Quality: Single Mode (SM), Multimode (MM)
Communication: Digital IO, RS-485
Input Power: 200-240 VAC ±10%, 30 A
Single or 3 Phase: Single Phase
Size (L x W x H): 36.7 in x 20.1 in x 41.4 in (933 mm x 511 mm x 1051 mm)
Weight: 350 lb (159 kg)
