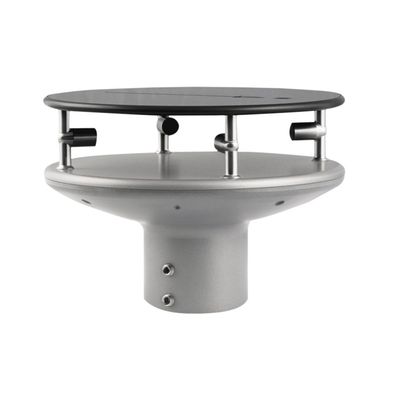

Thies Clima - Model 4.3875.xx.xxx -2D Compact Ultraschall Anemometer

The following measurement data are available:

• Orthogonal wind velocity vectors (X- and Y-distance)
• Scalar /­ vectorial wind velocity wind direction
• Acoustic-virtual temperature

The instrument is especially suitable for the use in the fields of:

• Regenerative power generation, wind power plants
• Industry automation
• Wind warning devices, building construction and building security
• Traffic engineering, aviation and navigation
• Meteorology
• Climatology

The measurement principle allows, compared to the classic anemometers, an inertia-free measurement of running variable dimensions with highest precision and accuracy.

• The data can be served
• analogically*, as standard signal or /­ and digitally in
• ASCII THIES- Format or
• binary as MODBUS RTU protocol

If necessary, the instrument is automatically heated at critical ambient temperatures. Thus, the risk of malfunction caused by icing is minimized.

The model no. 4 3875 2x xxx is equipped with an additional baro transmitter.

* only in HD (half duplex) operation no output of virtual temperature

Wind speed

• Measuring range: 0 ... 75 m/¬s
• Resolution:
• 0.1 m/s (standard)
• 0.01 m/s (special telegrams)
• Accuracy:
• ±0.2 m/¬s rms ( < 5 m/¬s )
• ±2 % rms ( 5 m/¬s ... 60 m/¬s )

Wind direction

• Measuring range: 0 ... 360 °
• Resolution:
• 1 °
• 1 ° (standard)
• Accuracy: ±2 ° WS > 1 m/¬s

Virtual temp.

• Measuring range: -50 ... +70 °C
• Resolution: 0.1 K
• Accuracy: ±2 K

Data output digital

• Interface: RS485 / RS422
• Baudrate: 1200 ... 921600 Baud
• Data values: instant. values, average values, standard deviation
• Output range:
• 1 per 10 msec up to
• 1 per 10 sec
• Status signals: heating, distance error, Temperature of meas section
• Protocol: ASCII / MODBUS RTU

Data output analog

• Wind speed:
• 0 ... 20 mA
• 4 ... 20 mA
• 0 ... 10 V
• 2 ... 10 V
• Stromausgang: max. 300 ?
• Wind direction:
• 0 ... 20 mA
• 4 ... 20 mA
• 0 ... 10 V
• 2 ... 10 V
• Voltage output: min. 3000 ?
• Resolution: 16 bit
• Data input analog (alternative)
• Chanels: 3
• Resolution: 16 bit

Operating voltage

• Electronic:
• 8 ... 60V DC or
• 12 ... 42 V AC / 1.2 W
• Heating: 24 V AC/¬DC, max. 250 W

Heating

• Heated compontents: bottom plate, cover plate, ultrasonic transducers

General

• Bus operation: up to 98 sensors
• Electr. connection: 8 pol. connector
• Mounting: e.g. Mast tube Ø 50mm
• Housing: AL, hard-snodized
• Protection: IP 68
• Dimension: Ø 200 mm x 144 mm
• Weight: approx. 2 kg

Product number 4.3875.00.260

Data output digital

• Baudrate: 4800 Baud
• Duplex mode: Full duplex
• Data telegram: NMEA telegram

Heating

• Heating control: HP11

Product number 4.3875.00.340

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Full duplex
• Data telegram: VDT-Telegram (Telegram2)
• Output range: 10 per 1 sec

Product number 4.3875.01.300

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output

Data output analog

• Type: 2 x 0 ... 20 mA
• Product number 4.3875.01.310

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output

Data output analog

• Type: 2 x 4 ... 20 mA
• Heating
• Heating control: HP10

Product number 4.3875.01.311

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output

Data output analog

• Type: 2 x 4 ... 20 mA

Heating

• Heating control: HP11
• Product number 4.3875.01.381

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex

Data telegram: MODBUS RTU

Data output analog

• Type: 2 x 4 ... 20 mA
• Product number 4.3875.02.300

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output

Data output analog

• Type: 2 x 0 ... 10 V
