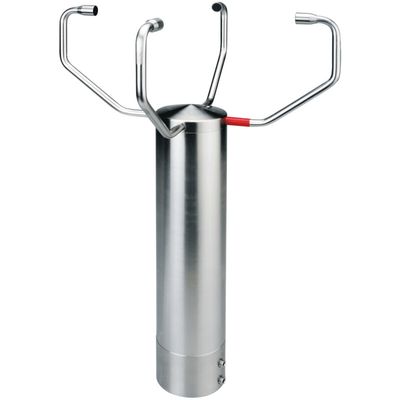

Thies Clima - Model 4.382x.0x.xxx -2D Ultrasonic Anemometer

Heated components:

• sensor arms

More than 35 different measurement values are available, for ex.:

• Orthogonal wind velocity vectors (X- and Y-distance)
• Scalar wind velocity
• Wind direction
• Acoustic-virtual temperature
• Acoustic-virtual temperature of the orthogonal measurement distances (X- and Y-distance)
• Standard deviation of the vectorial wind velocity (X and Y-distance)
• Standard deviation of the scalar wind velocity
• Standard deviation of the wind direction
• Standard deviation of the acoustic-virtual temperature
• Wind velocity of the gust acc. to WMO
• Wind direction of the gust acc. to WMO

The instrument is especially suitable for the use in the fields of

• Meteorology
• Climatology
• Regenerative energy, wind energy plant
• Traffic engineering, aviation and navigation
• Pollutant dispersal
• Wind alarm devices, building construction and building safety
• Indoor flow measurement
• And in alpine field of application

The ultrasonic measurement principle allows, compared to the classic anemometers, an inertia-free measurement of running variable dimensions with highest precision and accuracy. It is especially suitable for the measurement of gust- and peak values.

The measurement values can be transmitted digitally and/­or in analogue form.

The serial or analogue output of the data is carried out alternatively as instantaneous value or with selectable time frame.

If necessary, the sensor arms are automatically heated in case of critical ambient emperatures. The possibility of malfunction, caused by icing, is minimized.

Model no. 4.3820.3x.xxx, thanks to the additionally installed ultrasonic converter heating, is suitable even for the more difficult use in locations where frequently icing is to be expected

Wind speed

• Measuring range: 0 ... 85 m/¬s
• Resolution:
• 0.1 m/¬s (standard)
• 0.01 m/¬s (user defined)
• Accuracy:
• ±0.1 m/¬s rms ( < 5 m/¬s )
• ±2 % rms ( 5 ... 85 m/¬s )

Wind direction

• Measuring range: 0 ... 360 °
• Resolution:
• 1 °
• 1 ° (standard)
• < 1 ° (user defined)
• Accuracy:
• ±1 ° @ WS 1 ... 60 m/¬s
• ±2 ° @ WS 60 ... 85 m/¬s

Virtual temp.

• Measuring range: -50 ... +80 °C
• Resolution: 0.1 K
• Accuracy: ±0.5 K @ WS < 35 m/¬s

Data output digital

• Interface: RS485 /¬ RS422
• Baudrate: 1200 ... 921600 Baud
• Data values: instant. values, average values, standard deviation
• Output range:
• 1 per 10 msec up to
• 1 per 60 sec
• Status signals: heating, Meas section error, Temperature of meas section

Data output analog

• Wind speed:
• 0 ... 20 mA
• 4 ... 20 mA
• 0 ... 10 V
• 2 ... 10 V
• Stromausgang: max. 400 ?
• Wind direction:
• 0 ... 20 mA
• 4 ... 20 mA
• 0 ... 10 V
• 2 ... 10 V
• Voltage output: min. 4000 ?
• Resolution: 16 bit

Data input analog (alternative)

• Chanels: 3
• Resolution: 16bit

Operating voltage

• Electronic:
• 8 ... 78 V DC or
• 12 ... 55 V AC /¬ 2.5 W
• Heating: 24 V AC/¬DC, typ 80 W

Heating

• Heated compontents: Sensor arms

General

• Bus operation: up to 98 sensors
• Electr. connection: 8 pol. connector
• Mounting: on a mast tube 1,5``
• Housing: stainless steel (V4A) AiSi316Ti
• Protection: IP 67
• Dimension: Ø 424 mm x 287 mm
• Weight: 2.5 kg

Product number 4.3820.00.300

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Full duplex
• Data telegram: no independent telegram output

Product number 4.3820.01.300

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output
• Data output analog
• Type: 3 x 0 ... 20 mA

Product number 4.3820.02.300

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output
• Data output analog
• Type: 3 x 0 ... 10 V

Product number 4.3820.01.310

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output
• Data output analog
• Type: 3 x 4 ... 20 mA

Product number 4.3820.01.310

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output
• Data output analog
• Type: 3 x 4 ... 20 mA

Product number 4.3820.02.323

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output
• Data input analog
• Input type: 1 x 0 ... 10 V
• 2 x 2 ... 10 V

Product number 4.3820.02.320

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Half duplex
• Data telegram: no independent data output
• Data input analog
• Input type: 3 x 0 ... 10 V

Product number 4.3820.00.340

Data output digital

• Baudrate: 9600 Baud
• Duplex mode: Full duplex
• Data telegram: VDT-Telegram (Telegram2)
• Output range: 10 per 1 sec

Product number 4.3820.00.260

Data output digital

• Baudrate: 4800 Baud
• Duplex mode: Full duplex
• Data telegram: NMEA - Telegram
• Output range: 10 per 1 sec
