Web Wire - 2mm Round Perforated Metal

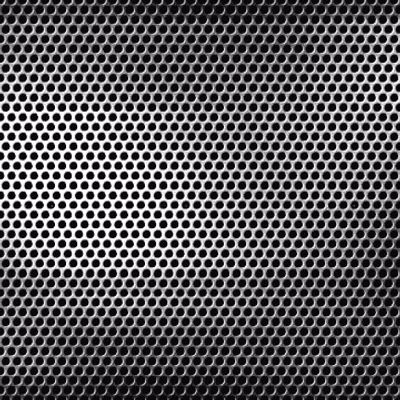

2mm round perforated metal mesh is made of metal plate match 2mm aperture punching die, by CNC punch pressing, cutting, slicing, leveling, grease, deburring, and surface treatment processes of roll or sheet mesh. We have 14 complete production lines and advanced numerical equipment, it will be combinations of different material ,pitch and opening rate,to produce more specifications mesh,it is widely used in audio, electronics, decoration, filtering fields.
Standard
- GB/T 10612-2003, GB/T 10613-2003, GB/T 12620-2008
- Anping Web Wire Mesh Co.Ltd. Perforated Metal Mesh Process and Technical Parameters
Material
- Stainless steel201, 202, 304, 304L, 316, 316L, 321, 430Steel Q195, Q215, Q235
- CopperC10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5
- Aluminum1050, 5052, 5056
Surface Treatment
- Stainless steelpolished finish
- Steelgalvanization(electroplating,hot-dip), PVC coated
- Aluminumanodizing, spray paint, powder coated
- Size:1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Note:
- D stands for hole size
- P stands for center to center distance
- T stands for mesh thickness
- Open area % is the total area of the holes divided by the total area of the sheet and is expressed as a percent.
- The weight is calculated according to stainless steel,stainless steel density is 7.93g/cm3,copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3
2mm round hole perforated metal mesh packing
Perforated metal should be packed firmly and securely. When packing, perforated metal appears in roll type and flat type. They are packed in wooden pallets generally. Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
- Speaker grilles
- Decorative
- Filter
- Test Sieve
- Furniture
- Ceilings
- Sound absorption
- Shape: Round
- Hole Size: 2.0mm
- Pitch: 3.0mm,3.5mm,4.0mm
- Thickness: 0.3mm-1.2mm
- Material: Stainless steel,Steel,Copper,Aluminum,Nickel
- Angle Patterns: 45°,60°,90°
- Size: 1m*1m,1m*2m,1.22m*2.44m,1m*30m,1.22m*30m,1.53m*30m
- Application: audio, electronics, decoration, filtering fields
