Newport - Model 8806 -3-Axis Picomotor Piezo Platform Mount

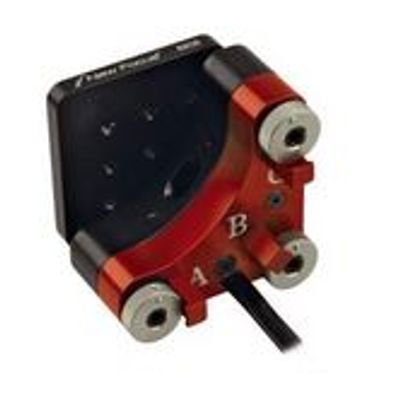

The 8806 Picomotor Motorized Blank Plate Mount has five threaded 8-32 holes and four M4 holes so you can mount that unusual optic. This motorized version can be used horizontally as a low cost tip-tilt stage or vertically as a more traditional optic mount. The compact Picomotor housing adds only 0.75 in. to the overall thickness of this mount. The angular resolution is 0.7 μrad. This mount can be driven by our Open-Loop Picomotor Controller/Driver and requires an 8725 multi-axis adapter to connect to a controller.
