EMO sas

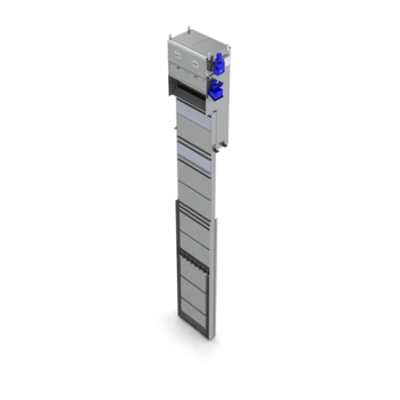

EMO - Model DCV-T -3 Cable Heavy Duty Bar Screen
FromEMO sas
Maximum width of channel = 3 100 m. Maximum depth of channel = 30 000 mm. Two lateral cables to drive the rake up and down. One central cable to open/close the rake in the bar. One hydraulic rake opening / closing (no other option). One hydraulic ejector to discharge the waste from the rake. Heavy duty – stronger design.
Most popular related searches
solid-liquid separator
wastewater pretreatment
solid-liquid separation
wastewater treatment plant
wastewater treatment
solids separation
bar screen
pump station
fine screen
fine screening
The cable driven rake is a mechanical fully automatic screen used for liquid/solid separation in the pre-treatment stage of wastewater treatment plants, pumping station …
- Alternative screening
- Fineness of screening : 10 to 80 mm
- Discharge height : up to 11 000 mm
- Canal height: 500 to 3 000 mm
- Canal width : 520 to 1 520 mm (or several attached devices)
- Outlet : up to 8 000 m3/h according to the air gap
- Compact
- Reduced maintenance
- Automatic working
- Material : 304L or 316L stainless steel
