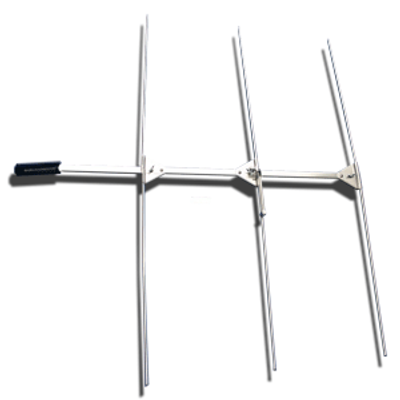

ATS - Model Yagi -3 Element Folding Antenna
Compact and light-weight...our most popular antenna for tracking on the ground. Standard Package Includes: Antenna, 1.52 m (5 ft) RG58 cable (ATS #11606), and antenna grip (ATS #11218).
- Our most popular, convenient-to-use model
- Compact hand-held design; easy to carry and unfolds quickly
- Custom tuned to user-specified 4 MHz range
- Includes 1.5 meter cable
- Gain: Isotropic: 7.7 dBi, Dipole: 5.6 dBi
- Half power width: Horizontal-plane: 59°, Vertical-plane: 95°
- Folded dimensions: 85.1x10.2x4.4 cm (33.5x4x1.75 in.)
- Weight: 0.54 kg (1.2 lb) to 0.71 kg (1.6 lb)
- Range of Ant Height: 76 cm (30 in.) to 81 cm (32 in.) (For 141-175 MHz)
- Range of Ant Length: 106 cm (42 in.) to 86 cm (34 in.) (For 141-175 MHz)
