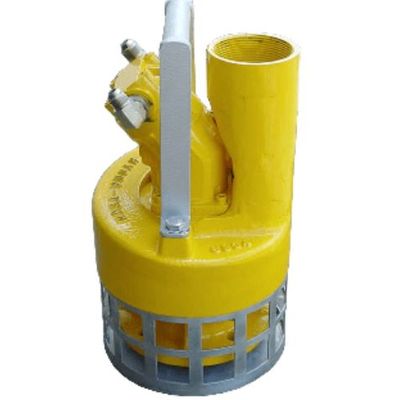

Hydra-Tech - Model S3SCR -3 Inch Hydraulic Submersible Centrifugal Screw Pump
FromHydra-Tech Pumps
The S3SCR is ideal for pumping high viscosity liquids such as crude oils, latex, molasses and refinery wastes using a positive displacement screw. When pumping lighter materials, the impeller acts as a centrifugal type providing high capacity. Typical uses include oil skimmers and cargo pumping.
Most popular related searches
screw pump
oil-lubricated seal
centrifugal screw pump
centrifuge
submerged cargo pump
refinery waste
oil skimmer
booster pump
confined space
submersible centrifugal pump
- Unique Centrifugal Screw Impeller.
- Small Overall Size allows for use in confined spaces
- Oil Lubricated Seals (can run dry)
- Can be used inline as a booster pump
- Safe Hydraulic Drive can be used where electric power is hazardous or impractical
- Optional External case drive available
- Operates with our HT10 to HT25 power units or other hydraulic power sources capable of flows of 6 - 11 GPM
- Lightweight and Powerful
- Weight: 43 lbs. (20 kg)
- Height: 16 1/2" (42 cm)
- Diameter: 9 1/4" (24 cm)
- Discharge: 3" NPT (F)
- Inlet Flange: 3" 125# ANSI
- Solid Handling: 1 1/2" (38 mm)
- Hose Ports: 1/2" JIC (M)
- Pump Body: Heat Treated Aluminum
- Impeller/Screw: CD4MCU Stainless Steel
- Suction Case: Heat Treated Aluminum
- Elastometers: Buna N (Std)
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max. 11 GPM (42 LPM)
- Operating Pressure: Max. 3500 PSI (241 Bar)
- Power Source: Any Open Center Hydraulic System
