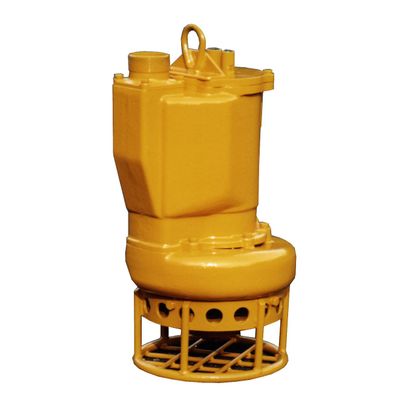

Hydra-TechModel S3CSL -3 Inch Hydraulic Submersible Sand/Slurry Pump with Agitator

SHARE

The S3CSL pump is designed for use in applications requiring settled solids to be put into suspension and pumped with the discharge water. Primary applications include de-silting ponds, lakes and streams. Other jobs may include filling sand bags to prevent beach erosion, tank and digester cleaning or pumping residue from rail tank cars or barges, often used for slip dredging at marinas.

Most popular related searches
  • Hardened Alloy Wear Parts
  • Built-in Agitator for stirring up solids
  • Oil Lubricated Seals (can run dry)
  • Variable Speed hydraulic drive
  • Small Size allows pump to fit through a 17 inch opening
  • Safe Hydraulic Drive can be used where electric power is hazardous or impractical
  • Dependable gear type hydraulic motor
  • Operates with our HT10 to HT20 power units or other hydraulic power sources capable of flows to 9 GPM
  • Weight: 231 lbs. (105 kg)
  • Height: 30 1/4" (77 cm)
  • Diameter: 16 1/4" (41 cm)
  • Discharge: 3" NPT
  • Solid Handling: 1 1/2" (38 mm)
  • Hose Ports: 1/2" and 3/4" NPT (F)
  • Impeller/Screw: High Chrome Alloy
  • Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
  • Input Flow: Max. 9 GPM (34 LPM)
  • Operating Pressure: Max. 2500 PSI (170 Bar)
  • Power Source: Any Open Center Hydraulic System
