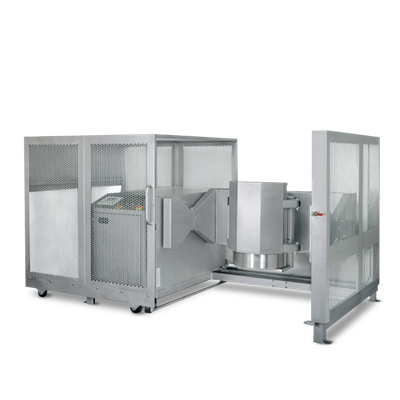

Dyna-MIX - 3D Shaker Mixer
The dyna-MIX 3D shaker mixer by WAB-GROUP is designed for homogeneous mixing of solids, solids with liquids, and liquids within tank volumes ranging from 40 to 1000 liters. This robust machine ensures precise mixing of larger material quantities with high specific weights while maintaining high-quality mixing results. The system uses a patented three-dimensional motion, meticulously controlled via its programmable control module. This system guarantees reproducibility and exceptional homogeneity in mixing processes. The mixer’s container is securely clamped, with customization options available to meet specific requirements. Applications include various industries such as pharmaceuticals, cosmetics, battery materials, and more. Customers can expect technical support with local sites and specialists available for consultation.The dyna-MIX mixes solids, solids with liquids and liquids. It is used when high-quality mixing results are required for higher quantities.
Its robust design also allows the processing of larger material quantities with high specific weights. A high-quality control system always ensures reproducible and extremely homogeneous mixing results.
The principle of the patented dyna-MIX 3D shaker mixer is based on a precisely controlled three-dimensional movement. The required motion paths are programmed in detail into the mixer's control module. The control system regulates the motion sequence of the cardanically suspended mixing vessel and ensures exact implementation of the three-dimensional mixing movements.
The mixing movements of the dyna-MIX enable gentle, uniform and always reproducible mixing processes. The mixing containers are held securely in a fixed clamping device. On request, we can adapt the fixed clamping device to special requirements.
- Achieving the highest mixing qualities
- Efficient and gentle mixing processes
- PLC control and data acquisition of process parameters with recipe storage
- Existing mixing containers can usually be reused
- No additional cleaning effort
- Quick mixing bowl change
- No contamination and no emissions
- Fixed clamping device with individual adaptation to the mixing containers
- Low basic noise of the mixer
