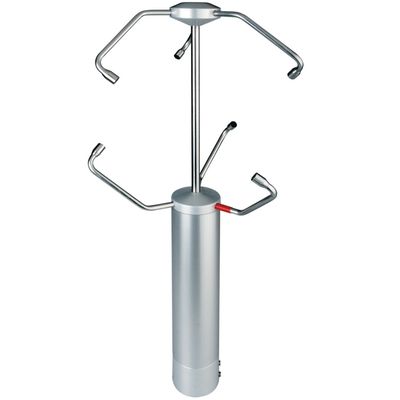

Thies Clima - Model 4.383x.2x.xxx -3D Ultrasonic Anemometer
The Ultrasonic Anemometer 3D serves for the 3-dimensional acquisition of the horizontal and vertical components of the wind velocity, the wind direction as well as of the acoustic-virtual temperature. The ultrasonic measurement principle allows, compared to the classic anemometers, an inertia-free measurement of running variable dimensions with highest precision and accuracy. It is especially suitable for the measurement of gust- and peak values.
Heated components:
- sensor arms
- ultrasonic transducers
More than 70 different measurement values are available, for ex.:
- Wind velocity in X/Y/Z-direction
- Total wind velocity
- Wind velocity azimuth
- Wind direction azimuth
- Wind velocity elevation
- Wind direction elevation
- Acoustic-virtual temperature
- Standard deviation of the wind velocity in X/Y/Z-direction
- Standard deviation of the total wind velocity
- Standard deviation of the wind velocity azimuth
- Standard deviation of the wind direction azimuth
- Standard deviation of the wind direction elevation
- Standard deviation of the acoustic-virtual temperature
- Statistic functions such as variance, co-variance, turbulence intensity
- Wind velocity X/Y/Z of the gust acc. to WMO
- Wind direction of the gust (elevation) acc. to WMO
The instrument is especially suitable for the use in the fields of
- Meteorology
- Climatology
- Traffic engineering, aviation and navigation
- Indoor flow measurement
- And in alpine field of application
Wind speed
- Measuring range: 0 ... 85 m/¬s
- Resolution:
- 0.1 m/¬s (standard)
- 0.01 m/¬s (user defined)
- Accuracy:
- ±(0.1 m/¬s +1 % ) rms ( 0 ... 35 m/¬s )
- ±2 % rms ( 35 ... 65 m/¬s )
- ±3 % rms ( 65 ... 85 m/¬s )
Wind direction
- Measuring range: 0 ... 360 ° /¬ 540 ° /¬ 720 °
- Resolution:
- 1 ° (standard)
- < 1 ° (user defined)
- Accuracy:
- ±1 ° ( 1 ... 35 m/¬s )
- ±2 ° ( 35 ... 65 m/¬s )
- ±4 ° ( 65 ... 85 m/¬s )
Virtual temp.
- Measuring range: -50 ... +80 °C
- Resolution: 0.1 K
- Accuracy: ±0.5 K
Data output digital
- Interface: RS485 / RS422
- Baudrate: 1200 Baud ... 921600 Baud
- Data values: instant. values, average values, standard deviation
- Output range:
- 1 per 10 msec up to
- 1 per 60 sec
- Status signals: heating, Meas section error, Temperature of meas section
Data output analog
- Measured values:
- WS - Vectors VxVyVz
- WS - Azimut, WD - Azimut, WS Elevation
- Wind speed:
- 0 ... 20 mA;
- 4 ... 20 mA;
- 0 ... 10 V;
- 2 ... 10 V;
- Stromausgang:max. 400 ?
- Wind direction:
- 0 ... 20 mA;
- 4 ... 20 mA;
- 0 ... 10 V;
- 2 ... 10 V;
- Voltage output: min. 4000 ?
- Resolution: 16 bit
Data input analog (alternative)
- Chanels: 3 x 0 ... 10 V
- Resolution: 16 bit
Operating voltage
- Electronic:
- 8 ... 78 V DC or
- 12 ... 55 V AC /¬ 2.5 W
- Heating: 24 V AC/¬DC, typ 150 W
General
- Bus operation: up to 98 sensors
- Electr. connection: 8 pol. connector
- Mounting: on mast tube 1,5``
- Housing: stainless steel (V4A) AiSi316Ti
- Protection: IP 67
- Dimension: 600 mm x 300 mm
- Weight: 3.4 kg
Product number 4.3830.20.340
Data output digital
- Baudrate: 9600 Baud
- Duplex mode: Full duplex
- Data telegram: VDT-Telegram (Telegram2)
- Output range: 10 per 1 sec
Product number 4.3830.22.300
Data output digital
- Baudrate: 9600 Baud
- Duplex mode: Half duplex
- Data telegram: no independent data output
- Data output analog
- Type: 3 x 0 ... 10 V; Vx, Vy, Vz
Product number 4.3830.20.300
Data output digital
- Baudrate: 9600 Baud
- Duplex mode: Full duplex
- Data telegram: no independent telegram output
Product number 4.3830.21.310
Data output digital
- Baudrate: 9600 Baud
- Duplex mode: Half duplex
- Data telegram: no independent data output
Data output analog
- Type: 3 x 4 ... 20 mA
