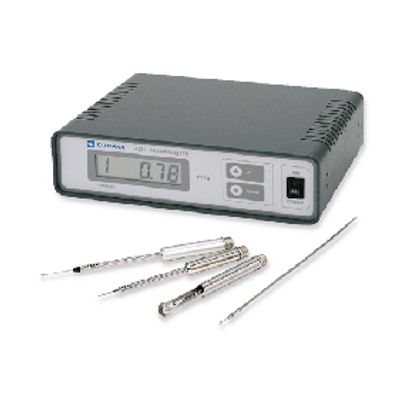

Kanomax - Model 1570 -4-Channel Anemometer

High precision research-grade air velocity meter

1570 Features

• Research-grade airflow measuring instrument designed for high performance and precision.
• When coupled with our highly accurate probes this four-channel anemometer provides highly accurate and reliable data readings.
• It features a LCD display that reveals the data from each channel.

• 10 optional air velocity probes available.
• Simultaneously measure 4 channels of air velocity.
• RS232C output to your company computer allows for easy data analysis.
• Analog output allows for easy and seamless integration into your system.

• Ventilation monitoring for energy efficient building.
• Evaluate cooling efficiency in the electronic device.
• Aerodynamics research.
• Production control.
• Product development.

General Specifications

• Display Resolution:
• 0.01 m/s (@ range of 0 to 9.99m/s)
• 0.1 m/s (@ 10 m/s or more)
• Response Time: Display: 0.3 second Sampling: 0.1 second Output: 0.1 second
• Analog Output: 0 to  5 V
• Interface: RS-232C
• Operation Temperature: 41 to 104°F (5 to 40°C) with no condensation
• Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation
• Dimensions: D 7.8 x W 10.2 x H 2.8 inches (200 x 260 x 70 mm)
• Weight: 5.7 lbs (2.6 kg)
• Power Supply: AC 85 to 276 V, 50/60Hz
• What’s Included: Meter, Operation manual, RS-232C cable, Power cord, Fuse

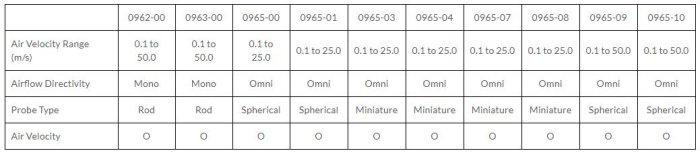

• 1570 Probes

Measurement Specifications

Air Velocity

• Ranges:
• 0.1 to 25.0 m/s
• 0.1 to 50.0 m/s
• Accuracy: +/- (3% of READING +/- 0.1) m/s
• Operating Temperature Range: -4 to 158°F (-20 to 70°C) with no condensation
• Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation
• Warranty: 1 year
• Standard Accessory: Probe, Data ROM, NIST TRACEABLE CALIBRATION Certificate
