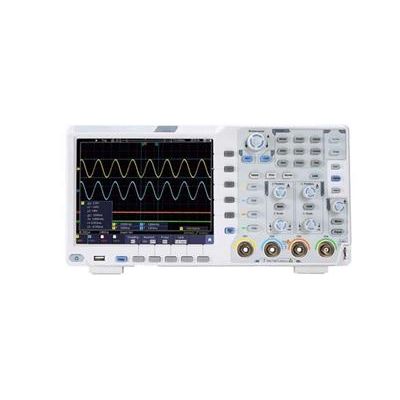

Berkeley - Model P4025T -4 Channel Touchscreen Digital Oscilloscope
The Model P4025T is a 200 MHz digital oscilloscope packed with measurement modes and features. The display doubles as a touchscreen allowing hand gestures like zooming in on a waveform. The Model P4025 offers 4 independent channels.
Most popular related searches
- Electronic Circuit Debugging
- Education and Training
- Circuit Testing
- Design and Manufacture
- Automobile Maintenance and Testing
- 200 MHz Bandwidth
- 1 GS/s Sample Rate
- 14-bit High-Resolution ADC
- 40M Record Length, 70,000 wfms/s Waveform Refresh Rate
- 8-inch 800 x 600 High-Resolution LCD Touchscreen
- Multi-Trigger and Bus Decoding Functions
- SCPI and LabVIEW Interfaces
- Display: 8" color LCD, 800 x 600 pixels display
- Bandwidth: 200 MHz
- Channels: 4
- Sample rate: 1 GS/s
- Record length: 40M
- Rise Time (at input, typical): ≤ 1.7 ns
- Input Impedance: 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF
- Communication Interface: USB Host, USB Device, USB Port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
- Maximum capacitance measured: 100 μF
- Power upply: 100 V - 240 V AC, 50/60 Hz, CAT II
- Dimensions (H x W x D): 340 x 177 x 90 (mm)
- Weight: 645 g
- Power Cord
- CD Rom
- USB Cable
- Probe
- Probe Adjust
- Multimeter Lead
- Adapter
- 5 V, 1 kHz
- Users Manual
- Capacitance Ext Module
- Soft Bag (optional)
- Metal Case
*Subject to change without notice.
