AMI CodeLine - Model 40E Series -4` Diameter End Port Pressure Vessels

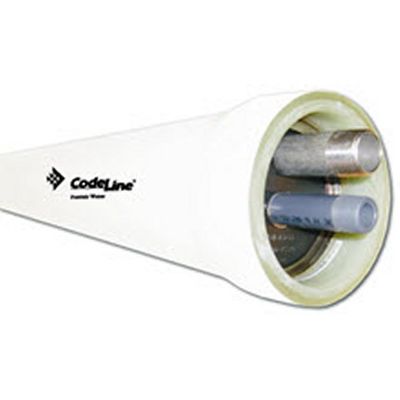

CodeLine 40E Series:  4" End Entry Membrane Housings (Pressure Vessels)

• End Entry Design
• Available in pressure rating of 300psi, 600psi & 1000psi
• Can accommodate any standard make of 4" Membrane Element

Benefits of CodeLine Pressure Vessel Membrane Housings

• A failsafe shell enables the vessel to weep at four times the design pressure preventing catastrophic failure, the qualification pressure exceeds six times the design pressure providing better safety.
• Composite construction which results in superior impact and corrosion resistance.
• Mirror ID finish up to 4 Ra, plus a precision bore delivers better membrane sealing and ease of membrane loading and unloading.
• The Unique quick locking system lets you access membranes in seconds.
• Multiporting option allows vessels to be linked together cutting down investment on expensive manifolds.

CodeLine Pressure Vessel Features

• Mirror finish I.D for easy & quick loading & unloading of membranes.
• Quick lock head retention system for quick access to membranes.
• Exteriors coated with high gloss polyurethane paint for UV resistance.
• Compact design for use in compact & low energy desalinators.
• All components of the shell & head are constructed from materials that are FDA / NSF listed.
• CE marking comes as a standard feature.
• Shell Construction: Filament wound epoxy/glass composite. Head locking grooves integrally wound in place. Shell exterior coated with white (or blue) high gloss polyurethane paint.

Applications for CodeLine Pressure Vessel Membrane Housings

• Desalination
• Municipal Water Treatment
• Industrial Processing
• Electronics Manufacturing
• Ultra - Pure Water
• Food & Beverage
• Automotive Application
• Power Generation
• Health Care
