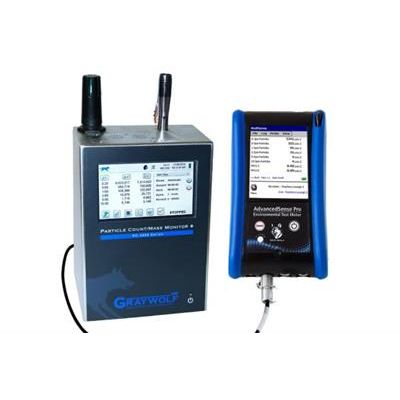

GrayWolf - Model PC-4000 Series -6-Channel Particle/Mass Monitor Plus
Use the PC-4000/5 as a stand-alone particulate meter, plug it into a mobile computer or into a sophisticated AdvancedSense/WolfPack system for simultaneous connection with GrayWolf’s DirectSense probes.
Most popular related searches
stainless steel enclosure
CO2 sensor
particle mass monitoring
particulate meter
particle sizing
PM2.5
temperature probe
HEPA filter
barometric sensor
environmental sensor
- Easily download data from the PC-4000/5 using the included WolfSense PC Software to create high quality trend/bar graphs/tables with WolfSense’s advanced organizational features or simply export to Microsoft Excel.
- Optionally add Advanced Report Generator software for extremely efficient, automated reporting of particle count/concentration data.
- Easy-to-read 4.3″ (10.9 cm) WQVGA (480x272) color touch screen.
- Offering 6 channels of simultaneous particle counting, this unit displays both particle counts and (PM) mass concentration (µg/m3 ). PM 0.5, PM1.0, PM 2.5, PM 5.0, PM 10 and TSP may be concurrently displayed and logged.
- Optionally add simultaneous %RH and °C/°F (PC-4000) plus TVOCs and/or CO2 (PC-4005). And even more parameters via interface to AdvancedSense Pro/ WolfPack/DirectSense.
- Measures particulate 0.3 μm to 25 μm
- 0.1 CFM (2.83 LPM) flow rate via precision, brushless internal pump
- Measures 6 channels of simultaneous particle count data
- Simultaneously displays calculated PM2.5, PM10 and TSP mass concentration in μg/m³ (pressure compensated w/internal barometric sensor)
- Optional %RH and temperature probe
- Optional TVOC and/or carbon dioxide sensors; highly accurate PID and NDIR (PC-4005 only)
- Large easy-to-use icon driven color touch screen display
- As a stand-alone, store up to 40,000 sample records, in up to 1000 location files, for download to GrayWolf’s WolfSense PC software
- Connect to GrayWolf’s AdvancedSense Pro, WolfPack meters or DirectSense tablets for additional parameters and enhanced features
- Connect via the cloud with optional Wireless 802.11 b/g hardware and GrayWolfLive™ software
- Internal audible alarm
- Complies with ISO 21501-4 and JIS B9921 standards
- Light weight stainless steel enclosure
- 2 year limited warranty
- Size Range 0.3 to 25μm
- Size Channels Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm Custom binning available
- Flow rate 0.1 CFM (2.83 LPM)
- Concentration Limit 4,000,000 Particles/ft³ @ 5% coincidence loss
- Battery Run Time PC-4000 10+ hours, PC-4005 8+ hours (typical)
- Light Source Long life laser diode
- Counting Efficiency 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
- Zero Count <1 count/5 minutes (<2 particles/ft³) (per ISO 21501-4 & JIS)
- Count Modes Automatic, manual, beep, cumulative/differential counts or mass concentration
- Count Alarms 1 to 9,999,999 counts
- Carbon Dioxide (Optional) 0 to 5,000 ppm ±65ppm ±3% rdg. (PC-4005 only)
- Relative Humidity/Temperature (Optional)
- 0 to 98 %RH ±2%RH,
- 32 to 122 °F (0 to 50 °C) ±1ºF (0.5ºC)
- TVOCs (Optional) 0 to 50ppm range, <5ppb L.O.D. (PC-4005 only)
- Display 4.3” (10.9 cm) WQVGA (480x272) color touch screen
- Vacuum Source Internal pump with automatic flow control
- Filtered Exhaust Internal HEPA filter
- Number of Channels 6 for particulate, plus 2 for optional TRH (PC-4000), plus 2 additional for optional sensors on the PC-4005
- Custom Size Channels Calibration for custom particle size channels available
- Audible Alarm Adjustable built-in alarm
- Battery Removable Li-ion
- Battery Recharge Time 4 hours
- Recipes 50 user-configurable recipes
- Communication Modes Serial (for interface with AdvancedSense Pro, WP, Tablets and data download to WolfSensePC), USB for calibration and firmware updates
- Optional Communication Modes
- RS-232/RS-485 Modbus and Ethernet hardware is standard. Wireless 802.11 b/g (with antenna) is optional. Interface with these comm modes requires optional software
- Alarm Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
- Standards ISO 21501-4 and JIS B9921
- Factory Calibration Recommended annually. NIST traceable (cert optional)
- External Surface Stainless steel
- Dimensions (L x W x H) 5.2” x 4.15” x 8.25” (13.3 cm x 10.5 cm x 21 cm)
- incl. barb fittings (9.5”, 24 cm H w/isokinetic inlet)
- Weight 4 lb (1.8 kg)
- Included Accessories Quick start guide, operating manual on USB flash drive, isokinetic probe, purge filter, WolfSense® PC data download and report generation software, USB cable, power supply (spec US, UK or Euro plug)
- Additional Optional Accessories: Calibration hood, printed manual, spare battery, spare external battery charger and isokinetic probes Buffer Memory 40,000 sample records (rotating buffer) including particle count data, environmental data, locations and times.
- Scrollable on screen or printout
- Sample Locations: Up to 1,000 locations 20 characters long (unlimited locations 256 characters long, when interfaced to AdvancedSensePro/WolfPack/DirectSense)
- Sample Time 1 second to 99 hours
- Power 110 to 240 VAC 50/60 Hz universal in-line power supply
- Operating Conditions 41º to 104ºF (5º to 40ºC)/20% to 90%RH non-condensing
- Storage Conditions 32º to 122ºF (0º to 50ºC) / Up to 98%RH non-condensing
- Warranty 2 years limited (1 year on internal pump and optional TVOC, CO2 sensors)
