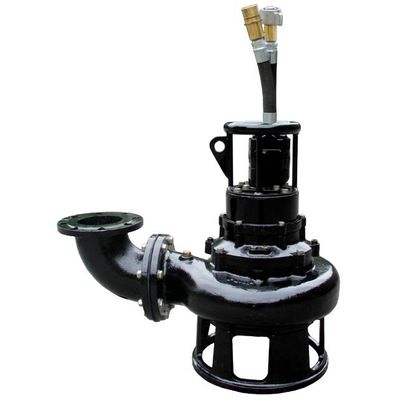

Hydra-Tech - Model S6SHR -6 Inch Hydraulic Submersible Shredder Pump
FromHydra-Tech Pumps
The S6SHR is designed to continuously rip and shear solids with a 360° shredding action. Great for municipal , industrial, agricultural and institutional waste applications. A guide rail assembly is available for stationary applications.
Most popular related searches
shredder pump
hydraulic submersible pump
submersible hydraulic pump
hydraulic shredder
submersible pump
sludge pumping
sludge pump
shredder
pump hose
industrial waste
- Weight: 418 lbs. (190 kg)
- Height: 31" (79 cm)
- Diameter: 35 3/4" (91 cm)
- Discharge Size: 6" ANSI Flange
- Solid Handling: 3 1/2" (9 cm)
- Hose Ports: 1" (-16) SAE(F)
- Pump Body: Ductile Iron
- Hose Ports: Ductile Iron
- Elastometers: Buna N (Std)
- Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
- Input Flow: Max. 30 GPM (1 14 LPM)
- Operating Pressure: Max. 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
