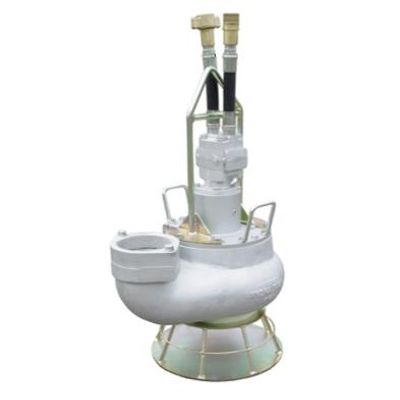

Hydra-Tech - Model S6T & S6TDI -6 Inch Hydraulic Submersible Utility Pump
FromHydra-Tech Pumps
The S6T is our most popular 6″ Pump. It is lightweight, compact and able to pass large solids, stringy materials and slurries with entrained gases. This versatile,powerful top discharge pump is designed for sewer bypass jobs, digester cleaning, plant intake desilting and inline pumping. Shut off head to 120 feet.
Most popular related searches
digester cleaning
sewer bypass
inline pump
utility pump
hydraulic submersible pump
submersible hydraulic pump
strainer
submersible pump
desilter
bypass sewer
- Weight: Aluminum: 202 lbs. (92 kg), Ductile Iron: 330 lbs. (150 kg)
- Height: 48" (122 cm)
- Diameter: 25" (63 cm)
- Discharge Size: 6" NPT(F)
- Inlet Flange: 6", 125#ASA
- Solid Handling: 5" (125 mm) without strainer, 2 1/2" (63mm) with strainer
- Hose Ports: 1" (-16) SAE
- Pump Body: Heat Treated Aluminum
- Hose Ports: Stainless Steel
- Elastometers: Buna N (Std)
- Input Flow: Max 30 GPM (114 LPM)
- Operating Pressure: Max 3000 PSI (204 Bar)
- Power Source: Any Open Center Hydraulic System
