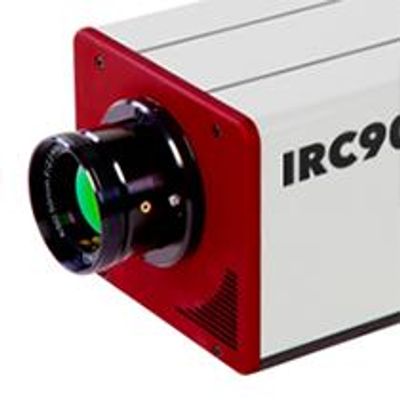

Mid Wave - Model IRC906 -640 x 512 Indium Antimonide (InSb) MWIR Infrared Camera
FromIRCameras LLC
The IRC906 provides the superior performance of a cooled MWIR sensor in a large format imaging camera. This closed-cycle cooled camera operates at up to 119 frames per second full frame, and supports sub windowing for even higher frame rates. With superior NEdT, greater than 99.5% operability and extremely high uniformity, the IRC906 is the perfect choice for the most demanding MWIR imaging applications such as Spectroscopy, Range Phenomenology and Process Analysis.
Most popular related searches
- Detector:
- Detector type: Indium Antimonide (InSb)
- Spectral response: < 1.0µm to 5.3µm
- Resolution (pixels): 640 x 512
- Pixel pitch: 20µm
- Imaging Electronics:
- Frame rate @ max window size: 119 Hz
- Integration time: < 150 ns to full frame
- Dynamic range: 14-bits with 13-bit option to increase frame rate at small window sizes
- Windowing: User defined in 4×1 increments; min width=320, min height=32
- Integration type: Snapshot, automatic selection of integrate while read or integrate then read
- Ultra low latency sync: Sync I/O, integration out
- Image data: Simultaneous Camera Link & Gig-E
- Communications: Serial over Camera Link & Gig-E
- Software control: Cross platform GenICam compliant
- Performance:
- NEdT: 18mK
- Well capacity (electrons): 7M
- Operability: 99.8%
- Optics:
- Camera f/#: f/2.3, f/3.0 & f/4.0 standard; custom cold shields available on request
- Cold filter: 3.0µm – 5.0µm or no cold filter standard, optional CO2, SWIR or custom filters on request
- Lens mount: Bayonet
- Optional filter wheel: Motorized four position warm filter wheel; 25.4mm diameter x 1.0mm thick filters
- General:
- Power @ 24 VDC: 20W
- System weight: < 7 pounds
- Closed cycle cooler: Rotary
- Size: 5.1″ x 5.8″ x 8″
- Operating temperature range: -40C to +55C (-40°F to +131°F)
- Storage temperature range: -55C to +80C (-67°F to +176°F)
- Environmental rating: IP-51
- Mounting holes: 2x 1/4-20 & 4x #10-24
