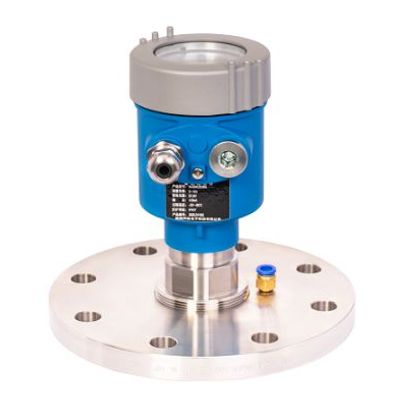

SKE - 80GHz Radar Level Sensor Gauge with S316 Flange

Frequency Modulation Continuous Wave(FMCW), Strong Adaptability.

• FMCW technology.
• Suitable for measuring liquids and bulk solids level.
• High penetration for high steam and high dust applications.

High precision

• Beam angle 3°.
• Measurement accuracy up to 1mm.

Easy to set up and debug

• Simple commissioning, saves time, no need to fill or empty tanks.
• Simple setting , only need to set two parameters to realize the measurement.
• Multi-language support (including Chinese), echo display, easy for maintenance personnel to analyze and debug.

Not affected by environment

• Not affected by temperature, pressure, dust and other process conditions.

Support a variety of output signals

• The measurement is not affected by changes in the medium, nor by process conditions such as temperature, pressure, dust, etc.
• Support 4~20mA?HART?Modbus , etc.

For tanks

• Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured.

For medium

• Solids, granules, powders and other solids
• Strong acid, strong alkali, and other liquids

Ambient temperature : -40°C - 200*C
Working pressure : -l~16bar
Explosion-proof mark : ExdllCT6

• Communication method : Two wire system
• Measuring range : 10 m?15 m?20 m?30 m?60 m
• Frequency : 77-81GHz
• Measuring antenna : PTFE/PFA
• Installation method : Thread/flange
• Ambient temperature : -40?~+200?
• Working pressure : -1~16bar
• Measuring error : ±1mm
• Beam : 3°
• Signal output : 4-20mA?HART ,ModBus?RS485
• Power : <0.5W(two wire system)
• Explosion-proof mark : Exdia II CT6Gb
