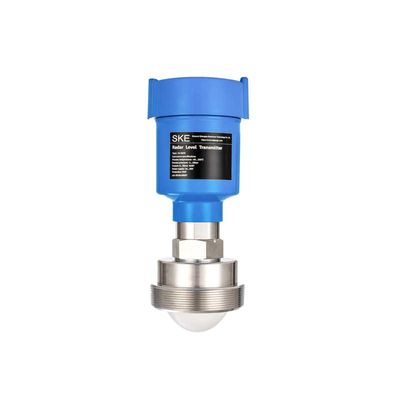

SKE - Model SK-R800EP -80GHz Radar Level Transmitter
Integrated 80GHz radar level transmitter sensor made of PVDF for highly-corrosion liquids is the ideal sensor for non-contact level measurement in various applications where a high degree of protection is required. It is particularly suitable for water treatment, pumping stations, rain overflow basins and level monitoring. medicion de nivel por radar, medidor de nivel tipo radar. Touchless water level sensor level indicator for tank. This SK-R800EP model comes with Certification issued under the authority of the Federal communications commission.
Easy-to-install and maintenance-free
Simple installation, maintenance-free operation, convenient debugging (mobile APP, WeChat mini-program debugging), long life.
Low-cost radar sensor.
Various signal output
A variety of output circuit interfaces cooperate with the acquisition system
Signal output: RS485/ 4-20mA,etc.
Continuous signal acquisition
Uninterrupted work, continuous online acquisition of signals.
Wireless transmission
No need to excavate cable trenches, no impact on the construction of channel lining, tree planting and other projects.
Strong anti-interference ability
Narrow emitting angle: ±3.5°.
Precise measurement results independent of media, process and ambient conditions
- Measuring range/Distance : 10m/15m
- Accuracy : ±2mm
- Signal output : 4~20mA/Modbus/Bluetooth
- Power supply : Two wire DC 24V ( 22V~30V )
- Ambient temperature : -20?~+70?
- Ambient humidity : (0%~95%)RH
- Protection : IP67
- Display : Mobile Phone APP
- Material,Wetted parts : PVDF
- Beam angle : ±5°
- Weight : 0.35kgs
- Sizes : ?76mm×107mm
Open channel water level monitoring
Automatic monitoring of seasonal rivers, will not recommend for underwater installations.
Flash flood warning
Monitoring of the highly-corrosion tail water level in front of the reservoir dam, under the dam, and the water level of the surge tower (well).
Urban waterlogging
Under the influence of heavy rainfall in urban low-lying terrain areas, the drainage system is overloaded, which can easily cause urban waterlogging and cause immeasurable loss of life and property to citizens. Using radar water level gauge to monitor its water level is an effective means of guarantee.
Sewage Disposal
City water supply, sewage level monitoring system.
Gate station water level monitoring
Data collection is carried out for the water level of the river. When the water level of the inland river is lower or higher than the warning line, a signal is output to the central control system, so that the station gate can realize real-time monitoring of the water level.
