Metrohm - Model 96X220 -96X Screen-Printed Gold Electrode

SHARE

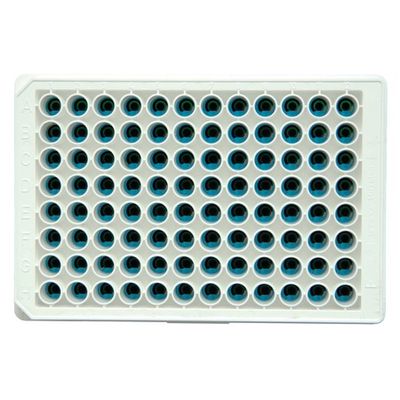

96X Screen-Printed Gold Electrode. Formed by 96 three-electrode electrochemical cells. Gold plated contact paths are printed in the backside of the plate.

Most popular related searches
screen-printed gold electrode
96 three-electrode electrochemical cell
screen-printed electrode
electrochemistry
PCB
  • AUX material: Gold
  • IDE Band/Gap dimensions: NO
  • MultiAnalysis Configuration: 96 Three-electrode Electrochemical Cells
  • REF material: Silver
  • Substrate material: PCB
  • Substrate size: 7.4 x 11 x 0.05 cm
  • WE diameter (mm): 2.56
  • WE geometric area (cm2): 0.054
  • WE material: Gold
