A-Lok - Model Z-LOK -Flexible Pipe to Manhole Connector

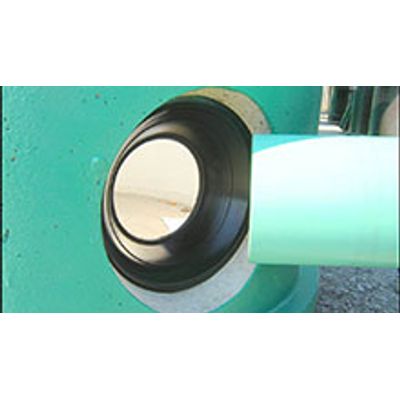

The Z-LOK Connector is a flexible pipe to manhole connector specifically engineered to produce a positive watertight seal for pipes entering precast concrete structures and the structure itself. The Z-LOK Connector is manufactured to meet or exceed all material and test requirements set forth in ASTM C-923, ASTM C-1478, ASTM C-1644 and ASTM F-2510.
- Assures a positive watertight connection and provides up to 25° omni-directional deflection and 1.50" of vertical or horizontal movement without loss of seal, providing greater flexibility in the design and installation of pipelines and structure
- The inner rubber O-ring design eliminates rubber wrinkling, compensating for pipe irregularity and wall thickness ensuring a watertight seal
- The unique bi-directional design permits the Z-LOK CONNECTOR take-down clamp to be fastened from either inside or outside of the structure. Once fastened, immediate backfilling is possible enhancing project safety and overcomes the normal problems encountered with water, running sand and other unstable trench conditions
- These design features of the Z-LOK CONNECTOR prevent infiltration due to shear caused by settlement or ground movement
A flexible pipe to manhole connector shall be used whenever a pipe pentrates into a precast concrete manhole or structure. The connector shall be the Z-LOK Connector as manufactured by A-LOK Products, Inc., Tullytown, PA or approved equal.
The design of the connector shall provide a flexible, watertight seal between the pipe and concrete structure. The connector shall assure that a seal is made between:
1. The connector and the structure wall by casting the connector integrally with the structure wall during the manufacturing process in a manner that it will not pull out during pipe coupling.
2. The seal between the connector and the pipe shall be made by the compression of the connecto between the outside circumference of the factory installed smooth oversleeve of a corrugated pipe or the smooth surface of a traditional pipe and the interior hole opening of the structure. The connector shall be the only component to affect the seal between the pipe and structure.
The connector shall be made from materials that conform to the physical and Section 4, "Materials and Manufacture" of ASTM C-923 "Standard Specification for Resilient Connectors Between Reinforced Concrete Manhole Structures and Laterals", and the overall design will meet or exceed Section 7, "Test Methods and Requirements" of ASTM C-923.
This connector shall be sized specifically for the type of pipe being used and shall be installed in accordance with the recommendations of the manufacturer.
