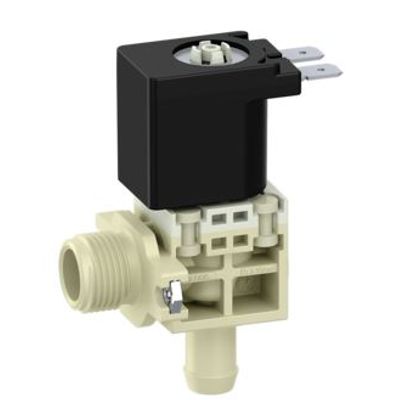

A-U-K-Müller - Model 62.005.115 -Servo-Controlled Solenoid Angle Valve
2/2-way solenoid valve of nominal diameter DN 5 for use with cold and heated potable water as well as physically and chemically similar media. The valve is servo-controlled and normally closed (NC).
Valves of this design are single chamber valves with the inlet ninety degrees to the outlet.
This compact valve is ideally suited as a water inlet valve with a flow factor Kv of 7 l/min.
The electrical operational safety is guaranteed by the electrical insulation coordination, which corresponds to the VDE 110 regulations. The manufacturing process includes a 100% electrical safety test in accordance with the VDE 0631 Part 1000 regulations.
By using high quality insulation materials, continuous duty (100 % ED) at higher medium temperatures is possible. The glass fibre reinforced polyamide valve body resists hot water.
- Electronic faucets and bidet
- Steam appliances
- Dental appliances
- Hot / cold drink dispensers
- Industrial appliances
- Air conditioning
- Agricultural implements
- Cleaning systems
- Temperature control devices
- Ice machines
- Water treatment installations
- Suitable for hot water up to 90°C
- Long term performance capability
- High operating safety through the use of high quality materials and 100% final testing of the products
- Servo-controlled
- Normally closed (NC)
- Solenoid replaceable while medium circuit remains untouched, solenoid rotatable 4 x 90°
- Optimized water hammer characteristic by low noise emission according to EN 60730
- Type solenoid valve
- Construction single-chamber valve inlet ninety degree to outlet
- Function NC (normally closed)
- Ways 2/2-way
- mode of operation servo-controlled
- Media Cold and heated potable water and physically and chemically similar media
- T-Medium 5 - 90 °C (194 °F max.)
- T-Ambient 5 - 70 °C (41 - 158 °F)
- DN 5,0 mm
- Pressure range 0,2 - 10 bar
- Flow factor Kv 7 l/min @ 1 bar
- Flow regulator on request
- Pressure surge according to EN 60730
- Coil type MS 39
- MS 40
- Nominal voltage 24 V DC
- other voltages on request
- Voltage tolerance +10% -15%
- Duty cycle 100%
- Nominal power 8,0 W
- Protection type IP 00 up to IP 65
- Coil connections Flat Tabs 6,3 x 0,8 mm according to EN 60529 (IP 00)
- Coil connections (MS.040) plug socket, model B-industry form
- Insulation class H according to EN 60730
- Protection class I according to EN 60730
- (for incorporation in class I)
- Valve body PA 66, glass fibre reinforced
- Plunger Guide PPSU
- Plunger and spring stainless steel
- Membrane and sealings EPDM
- Coil coating PET
- Filter Stainless steel
- Filter (in inlet) POM
