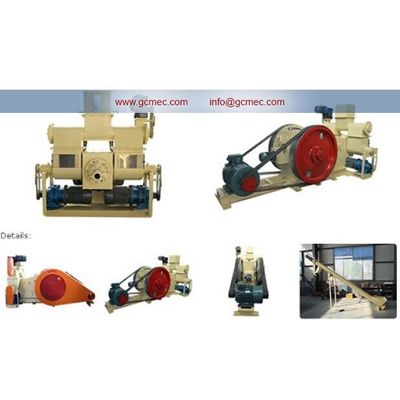

ABC Machinery - Model GC-MBP-2000 Sawdust Briquette Press -GC-MBP-2000 Sawdust Briquette Press

The GC-MBP-2000 sawdust briquette press designed by our company is a kind of curing molding equipment that compacts the crop straw forest cutting residue into fuel pressing block after dusting, compression, shaping and other processes.
The compressed fuel is lumpy, small in size and dense in density, which is convenient for storage and transportation. It increases the combustion value of unit area by more than ten times, and its heat generation and smelting resistance are close to that of medium coal. The sawdust briquette press adopts screw prepressing, piston stamping, two-stage compression process, forced cooling of oil to ensure equipment lubrication, which solves the shortage of common rod making machine, such as high water content of raw materials and fast wear of forming mold; The sawdust briquette making machine has the characteristics of low power consumption, high production efficiency, long running life and low maintenance rate. Biomass fuel can replace coal, oil and other conventional energy sources, widely used in industrial production, government offices, enterprises and institutions, urban residents heating, cooking, upscale fireplace and tobacco farmers flue-curing, can also be used as raw materials for biomass power plants.

Raw materials: biomass straw (sawdust, chaff, sawdust, forage grass, straw, corn straw, wheat straw, corn straw, peanut seedlings, soybean straw, leaves, cottonseed bark and other roughage and cotton straw, shrub, forest products, etc.)
Complete set of biomass briquette plant:
1. Main engine
2. Silo
3. Conveyor
4. Electric control cabinet
5.  Oil cooling system
6. Accessories (according to actual contract requirements)

Product model: GC-MBP-2000
Main engine power: 65kW;
Processing capacity: 1.2t /h
External dimension: 3500 * 2000 * 1800 (mm);
Total weight: 7000kg
Product specification: mold diameter of 8-100mm can be changed freely and adjusted at will
Product shape: round rod shape
Product density: 1-1.4g/cm3
