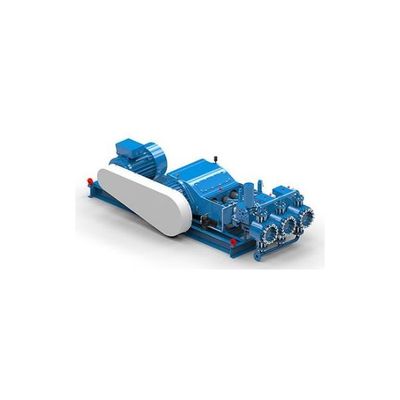

ABEL - Model HMT -Triplex Piston Diaphragm Pump
The Solution for high-pressure Applications: The piston diaphragm pump for more extreme pumping applications up to 210 m3/h (905 PM) - up to 25 MPa (3625 psi). It is a single-acting, slow-running triplex piston diaphragm pump. High operating pressures in connection with increased flow rates place particularly high demands on the pump. When abrasive materials with an increased SC-content are present, many industrial partners decide on an ABEL HMT. For solids transfer, the ABEL HMT provides a clever solution to pumping suspensions that have high dry substance content and a high specific weight. The strong points of the HMT are its quiet operation (low residual pulsation) because the crankshaft has a crank offset of 120° which gives it a steadier volumetric flow.
ABEL HMT pumps can be used to transfer a variety of different types of high-viscosity ash and mine slurries. They offer the chemical industry an attractive alternative to conventional plunger pumps and piston pumps, particularly for low flow applications.
Piston diaphragm pumps are the first choice worldwide for process-critical pump applications because they can meet the requirements for high availability and process reliability.
Our concept of diaphragm monitoring, which provides a high service life, is the main reasons for the reliability and durability of this pump series. The ABEL HM is therefore particularly advantageous when working with very difficult media. In conjunction with our decades of design experience, we are able to set new standards for pumping technology and equipment, that are regarded as the market leader by many industries around the world.
- Low operating and maintenance costs due to high overall efficiency, low energy costs and simple maintenance with few wearing parts
- Pre-formed diaphragm: low wear and high process reliability
- Diaphragm control and monitoring increases safety and operation free of faults
- Reliable valve technology with ball or cone valves: problem-free conveyance of sludge with high sand and mineral content, free of blockages when pumping fibrous solids
- Nodular cast iron
- Stainless steel
- Rubber lined
- Polypropylene
- Ball Valve
- Cone Valve
- Reverse Valve
- Tailings/Sludge/Fluid Transfer
- Filter Press Feed
- Autoclave Feed
- Rotary Kiln Feed
- Gland Seal Water
- Spray Dryer Feed
- Mine Dewatering
- Mine Backfilling
