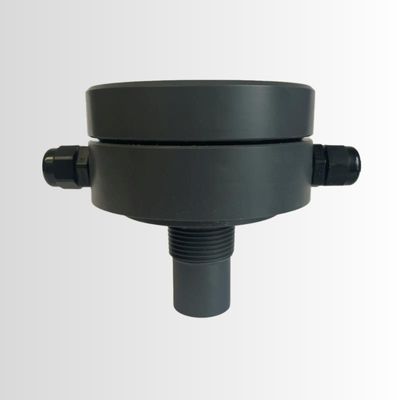

ABM - Model UM-LIQ -Liquid Mini Ultrasonic Level Transmitter
The UM-LIQ mini ultrasonic transmitter from ABM is the ideal solution for short range liquid level applications. The non-contact ultrasonic transmitter provides continuous level measurement up to 50 ft (15.2 m) with 4-20 mA output standard and simple push-button calibration. The transmitter can be factory configured for a variety of applications with optional RS485 communication, remote monitoring, relay for alarm contacts, and multiple mounting options.The UM-LIQ mini ultrasonic level transmitter is the ideal solution for short range liquid level applications.
- Measuring range up to 50 ft (15.2 m)
- Non-contact continuous level measurement
- Self-cleaning, maintenance free operation
- Plug-and-play installation with simple calibration
- Remote monitoring and virtual support optional with Cellular Gateway
Learn more about the UM-LIQ ultrasonic level transmitter here.
Industries
- Water & Wastewater
- Chemical
- Petrochemical
- Food & Beverage
Applications
- Level of small tanks, containers, totes or drums
- Process tank level and control
- Inventory level in storage tanks
- Open channel water or wastewater measurement
- Wastewater flume or weir flow measurement
ABM’s mini ultrasonic level transmitters are used in short range liquid applications in small tanks such as barrels, drums and totes due to their mounting and maintenance-free nature. Any build-up on the transducer face is being eliminated, continuously cleaned. False echoes from tanks walls are eliminated by automatic adjustment of the power and sensitivity. The sensors are ideal for food & beverage, pharmaceutical and chemical processing, as the sensors adapt to any condition automatically without user involvement.
Learn more about our mini ultrasonic level transmitters on our website.
