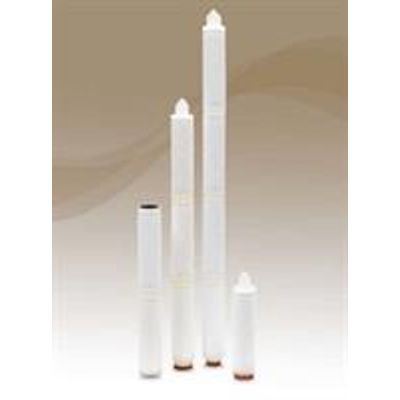

Shelco MicroVantage - Model PDA & PDH Series -Absolute and High Efficiency Rated Melt-Blown Depth Cartridges
FromShelco Filters
PDA Series – 99.9% retention ratings from 0.5 to 70 microns PDH Series – 90% retention ratings from 0.5 to 75 microns. 100% melt blown polypropylene microfibers are thermally bonded into a multi-layer gradient density pore structure for maximum dirt holding capacity in each filter. Fixed-pore structure blown over rigid center core provides greater stability for higher differential pressures and elevated temperature conditions. FDA listed materials of construction meet USP Class IV criteria. PDA Series are lot traceable industrial filters and come with a certificate of conformance. Ideal for food & beverage and pharmaceutical applications.
Most popular related searches
polypropylene filter media
steam sterilizer
clarifier filtration
steam sterilization
filter housing
melt-blown cartridge
gaskets
polypropylene melt-blown
autoclave
clarifier system
- Ideal for critical applications requiring economical absolute or high efficiency filtration
- Absolute (99.9%) and high efficiency (90%) retention ratings from 0.5 to 75 microns
- Multiple zone gradient density fixed pore structure – maximizes dirt holding capacity and provides true clarifying filtration
- Fixed pore structure with high void volume – optimizes onstream service life
- Microfibers thermally bonded to rigid center core – provides greater stability under higher temperatures and differential pressures
- PDA Series are lot traceable - comes with certificate of conformance
- 100% polypropylene construction – meets FDA requirements
- All components meet USP Class VI criteria for use in pharmaceutical applications
- Free of surfactants, binders and adhesives
- Available in standard lengths and end cap configurations – fits most filter housings
- RO Prefilters
- Food & Beverage
- Plating Solutions
- Microelectronics
- Chemicals
- Paint/Inks
- Water & Wastewater
- Cosmetics
- Pore Sizes
- 0.5, 1.0, 3.0, 5.0, 10.0, 20.0, 50.0, 75.0 microns
- Nominal Lengths
- 9.75", 10", 19.5", 20", 29.25", 30", 40"
- Materials of Construction
- Filter Media: Polypropylene
- Core / End caps: Thermally bonded polypropylene
- Gaskets/O-rings
- Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only) and Santoprene (direct bond gaskets)
- Recommended Change-out Differential Pressure
- 35 psid (2.4 bar)
- Steam Sterilization
- Shelco’s PDA single open end style filters may be autoclaved under no end load conditions for 30 minutes at 121° C. Filters should be cooled at normal operating temperatures prior to use.
- FDA Compliance
- PDA and PDH products are manufactured of pure polypropylene materials with no additives or other manufacturing agents. All materials used in the production of these cartridges meet the requirements of FDA Title 21 of The Code of Federal Regulations 174.5 and 177.1520.
