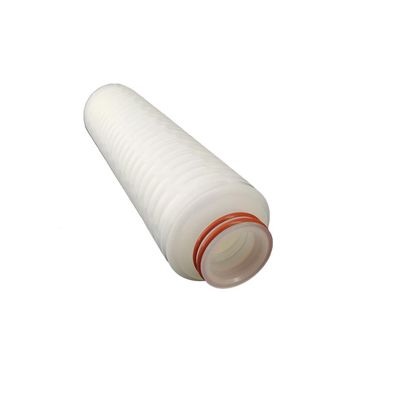

ARC - Model ECO-DAP -Absolute PP Pleated Filter
ECO-DAP is an absolute pleated filters,the all polypropylene structure provide a wide range of applications and cost effective. The extended pleated polypropylene media area provide high flow rates low pressure drop and increased dirt holding capacity.
Most popular related searches
pleated filter
polypropylene filter media
pleated polypropylene filter
filter element
depth filter
polypropylene filter
media filter
gaskets
- Outer Cage: Polypropylene
- Inner Cage: Polypropylene
- Endcaps: Polypropylene
- O-ring & Gasket: Silicone, EPDM
- Filter Media: Polypropylene
- Ratings from 0.5 to 90 micron
- Absolute Filter Rating
- Multi-layers filter media up to five
- Long service life & economy costs
- FDA listed all polypropylene components
- OD: 2.7"(70mm)
- Length: 10",20",30",40"
- Normal Operation Temperature: up to 55°C
- Max Operation Temperature: 80°C△P≦1Bar
- Maximum Pressure differential: 4.2bar at 25°C
- Maximum Reverse pressure differential: 2.1 bar at 25°C
- Filtration Area: 0.6m2
- Work PH Value: 1-14
- Back Wask: not rcommend
- Part No=DAP+Micron+Adapters+Length+O-ring
- EG: A 40 inch 0.5um filters with 226/Fin adapters and Viton O-ring
- The Part NO:DAP05F40V
